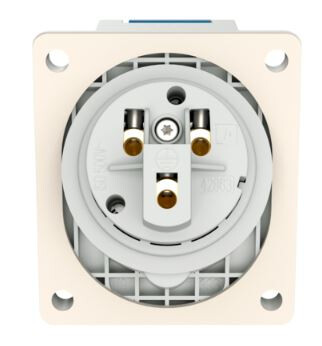

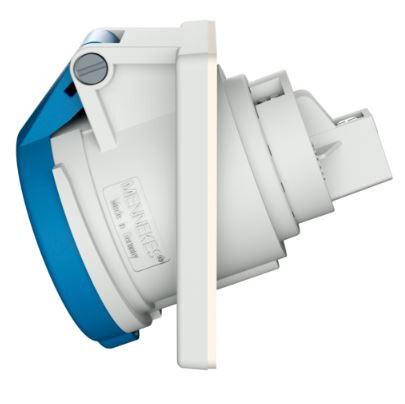

PANEL MOUNTED RECEPTACLE 1463 16A3P 6H230V - IP44
Product code
2424660

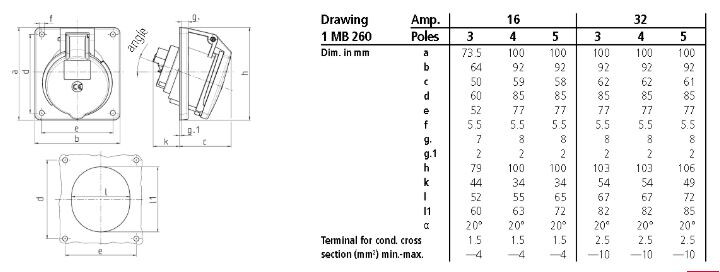

Enclosed power socket 16A 3P 230V. Enclosure size 73.5x64 mm with hole spacing 60x52 mm. Screw connections.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Panel-mounted CEE socket outlet (IEC 60309) (EC001317)
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Voltage according to EN 60309-2230 V (50+60 Hz) blue
Rated voltage229 - 230 V
Rated frequency50 - 60 Hz
Number of poles3
Clock hour position6 h
Identification colourBlue
RAL-number5007
Degree of protection (IP)IP44
Connection systemScrewed terminal
Insert directionAngled
MaterialPlastic
Contact materialCuZn
Surface treatment contactsUntreated
Product codes
SAPABV245
STK2424660
PLC2424660
GTIN/EAN4015394011187
Manufacturer part number1463
Vendor material number1463
Basic information
Package measurements (L x W x H)75 x 65 x 85 mm
Package volume0.414 l
Package weight0.14 kg
Base uniteach
Package units1 / 10 / 1520
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
