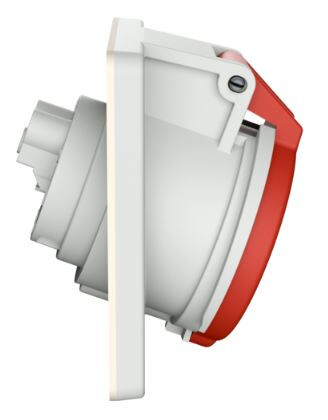

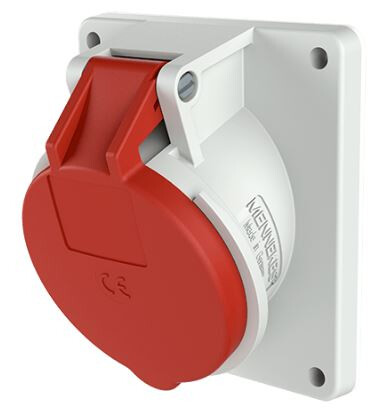

PANEL MOUNTED RECEPTACLE 1473 16A5P 6H400V - IP44
Product code
2423738

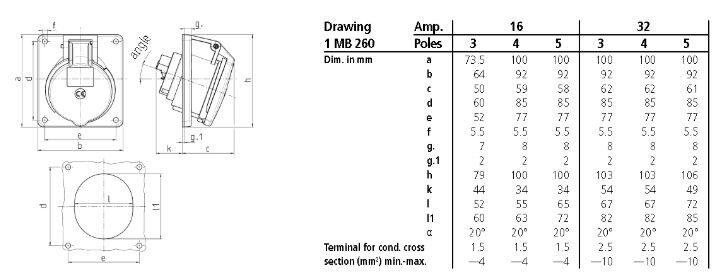

5-pin flap-type 16A 400V power socket with a 100x92 mm flap and hole spacing of 85x77. Screw terminals. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Panel-mounted CEE socket outlet (IEC 60309) (EC001317)
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Voltage according to EN 60309-2400 V (50+60 Hz) red
Rated voltage399-400 V
Rated frequency50-60 Hz
Number of poles5
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP44
Connection systemScrewed terminal
Insert directionAngled
MaterialPlastic
Contact materialCuSn
Surface treatment contactsUntreated
Product codes
SAPAAY994
STK2423738
PLC2423738
GTIN/EAN4015394011309
Manufacturer part number1473
Vendor material number1473
Basic information
Package measurements (L x W x H)98 x 89 x 77 mm
Package volume0.672 l
Package weight0.202 kg
Base uniteach
Package units1 / 10 / 880
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (4)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
