PANEL MOUNTED RECEPTACLE 1629 16A3P 6H230V -IP44
Product code
2424672
Panel mounted recept. TA, 16A3p 6h230V

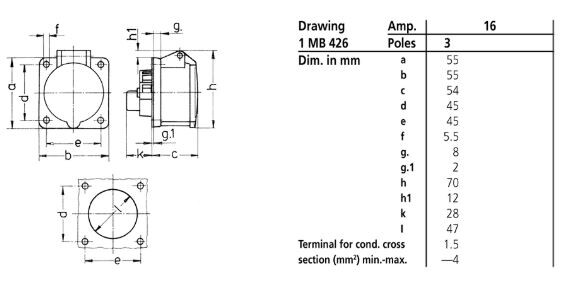

Flush-mounted power socket 16A 3P 230V. Flush box size 55x55 mm with hole spacing 45x45 mm. Screw terminals.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Panel-mounted CEE socket outlet (IEC 60309) (EC001317)
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Voltage according to EN 60309-2230 V (50+60 Hz) blue
Rated voltage229 - 230 V
Rated frequency50 - 60 Hz
Number of poles3
Clock hour position6 h
Identification colourBlue
RAL-number5007
Degree of protection (IP)IP44
Connection systemScrewed terminal
Insert directionStraight
MaterialPlastic
Military modelno
Flange size vertical55 mm
Product codes
SAPABV250
STK2424672
PLC2424672
GTIN/EAN4015394155249
Manufacturer part number1629
Vendor material number1629
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.386 l
Package weight0.012 kg
Base uniteach
Package units10
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (5)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
