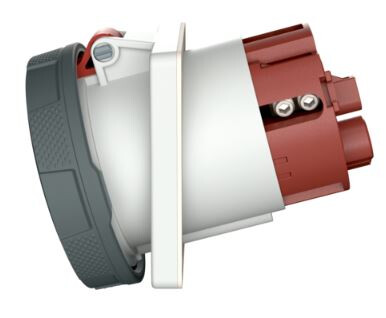

PANEL MOUNTED RECEPTACLE 216A 125A5P 6H400V - IP67
Product code
2424635

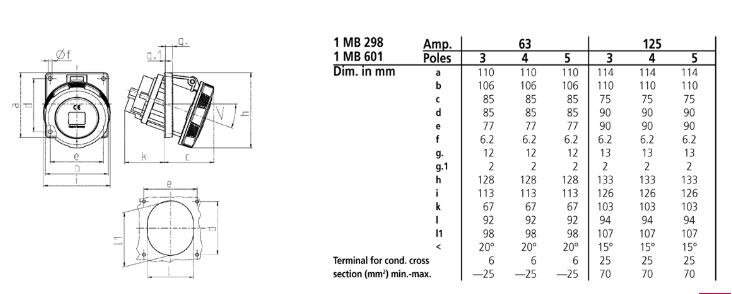

IP66-rated power socket 125A 5P 400V. Cover size 114x110 mm with hole spacing 90x90 mm. Screw terminals. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Panel-mounted CEE socket outlet (IEC 60309) (EC001317)
IEC-amperage125 A
Amperage according to UL/CSA (for UL-version)100 A
Voltage according to EN 60309-2400 V (50+60 Hz) red
Rated voltage399 - 400 V
Rated frequency50 - 60 Hz
Number of poles5
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP67
Connection systemScrewed terminal
Insert directionAngled
MaterialPlastic
Contact materialCuZn
Surface treatment contactsUntreated
Product codes
SAPABV235
STK2424635
PLC2424635
GTIN/EAN4015394001034
Manufacturer part number216A
Vendor material number216A
Basic information
Package measurements (L x W x H)130 x 120 x 160 mm
Package volume2.496 l
Package weight1.184 kg
Base uniteach
Package units1 / 5 / 225
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (5)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
