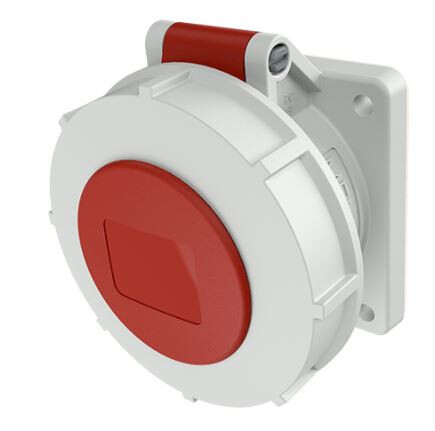

PANEL MOUNTED RECEPTACLE 240 32A5P 6H400V - IP67
Product code
2424638
Panel mounted recept., 32A5p6h400V, IP67

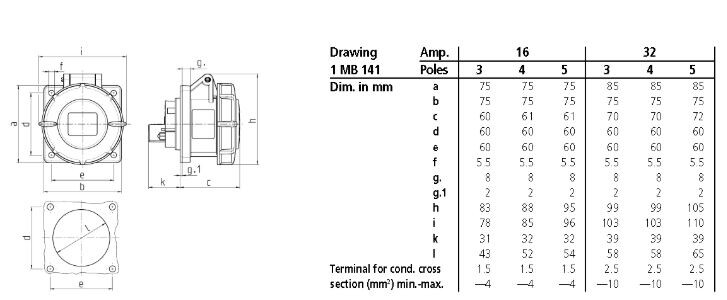

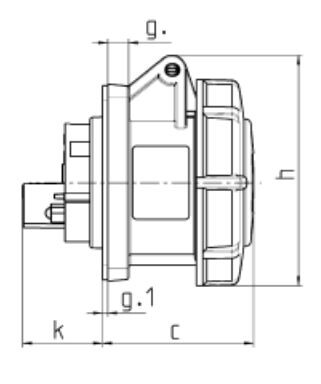

Flush-mounted 32A 5P 400V socket. Flush box size 85x75 mm with hole spacing 60x60 mm. Screw terminals.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Panel-mounted CEE socket outlet (IEC 60309) (EC001317)
IEC-amperage32 A
Amperage according to UL/CSA (for UL-version)30 A
Voltage according to EN 60309-2400 V (50+60 Hz) red
Rated voltage399-400 V
Rated frequency50-60 Hz
Number of poles5
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP67
Connection systemScrewed terminal
Insert directionStraight
MaterialPlastic
Contact materialCuSn
Surface treatment contactsUntreated
Product codes
SAPABV237
STK2424638
PLC2424638
GTIN/EAN4015394001379
Manufacturer part number240A
Vendor material number240A
Basic information
Package measurements (L x W x H)110 x 100 x 110 mm
Package volume1.21 l
Package weight0.32 kg
Base uniteach
Package units1 / 10 / 660
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
