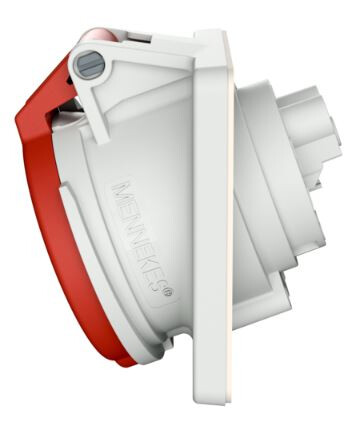

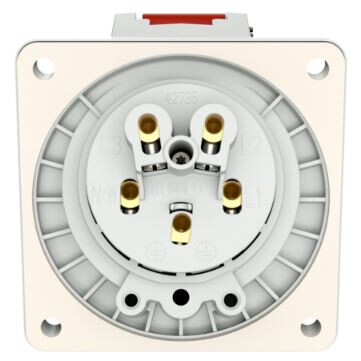

PANEL MOUNTED RECEPTACLE 3093 16A5P400V IP44 85X85MM
Product code
2424878
IP66-rated power socket 16A 5P 400V. Cover size 85x85 mm with hole spacing 70x70 mm. Screw terminals. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE socket outlet (IEC 60309) (EC001321)
Mounting methodFlush-mounted
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Number of poles5
Voltage according to EN 60309-2400 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
RAL-number3013
Housing colourGrey
Degree of protection (IP)IP44
Connection systemScrewed terminal
Cable entryOther
MaterialPlastic
Insulated mountingno
Lockableno
Product codes
SAPACZ759
STK2424878
PLC2424878
GTIN/EAN6410024248786
Manufacturer part number3093
Vendor material number3093
Basic information
Package measurements (L x W x H)85 x 85 x 80 mm
Package volume0.578 l
Package weight0.18 kg
Base uniteach
Package units1 / 10 / 880
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (5)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
