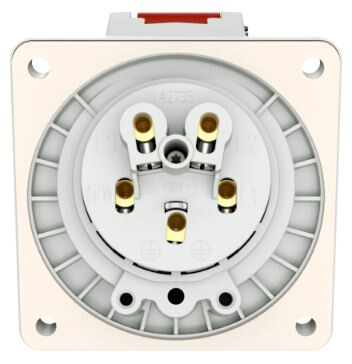

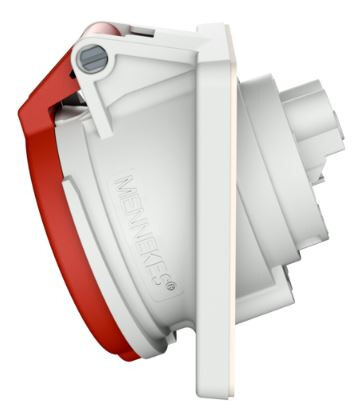

PANEL MOUNTED RECEPTACLE 3153 32A5P400V IP44 85X85MM
Product code
2424879
IP66-rated power socket 32A 5P 400V. Cover size 85x85 mm with hole spacing 70x70 mm. Screw terminals. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE socket outlet (IEC 60309) (EC001321)
IEC-amperage32 A
Amperage according to UL/CSA (for UL-version)30 A
Number of poles5
Voltage according to EN 60309-2400 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP44
Connection systemScrewed terminal
Cable entryOther
MaterialPlastic
Military modelno
Product codes
SAPACZ760
STK2424879
PLC2424879
GTIN/EAN6410024248793
Manufacturer part number3153
Vendor material number3153
Basic information
Package measurements (L x W x H)98 x 82 x 105 mm
Package volume0.844 l
Package weight0.276 kg
Base uniteach
Package units1 / 10 / 660
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (5)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
