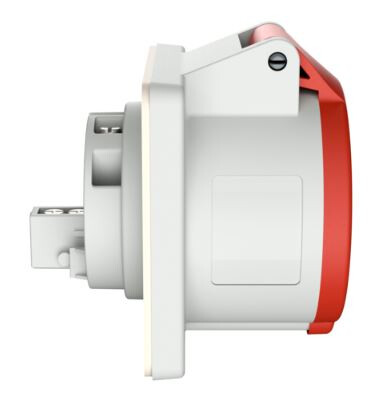

PANEL MOUNTED RECEPTACLE 3451 32A5P 6H400V - IP44
Product code
2423733
5-pin 32A 400V flush-mounted power socket with screw spacing of 75x75 on the cover. Screw terminals. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Panel-mounted CEE socket outlet (IEC 60309) (EC001317)
IEC-amperage32 A
Amperage according to UL/CSA (for UL-version)30 A
Voltage according to EN 60309-2400 V (50+60 Hz) red
Rated voltage399-400 V
Rated frequency50-60 Hz
Number of poles5
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP44
Connection systemScrewed terminal
Insert directionStraight
MaterialPlastic
Contact materialCuSn
Surface treatment contactsUntreated
Product codes
SAPAAY993
STK2423733
PLC2423733
GTIN/EAN4015394019138
Manufacturer part number3451
Vendor material number3451
Basic information
Package measurements (L x W x H)74 x 74 x 102 mm
Package volume0.559 l
Package weight0.246 kg
Base uniteach
Package units1 / 10 / 880
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (4)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
