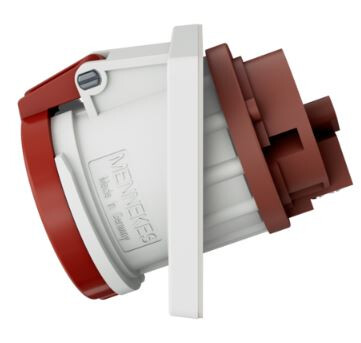

PANEL MOUNTED SOCKET 21160A 63A5P400V -IP44 90X90MM
Product code
2424694
Panel mounted recept., 63A5p6h400V, IP44
IP66-rated power socket 63A 5P 400V. Cover size 110x106 mm with hole spacing 90x90 mm. Screw terminals. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Panel-mounted CEE socket outlet (IEC 60309) (EC001317)
IEC-amperage63 A
Amperage according to UL/CSA (for UL-version)60 A
Voltage according to EN 60309-2400 V (50+60 Hz) red
Rated voltage399 - 400 V
Rated frequency50 - 60 Hz
Number of poles5
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP44
Connection systemScrewed terminal
Insert directionAngled
MaterialPlastic
Contact materialCuZn
Surface treatment contactsUntreated
Product codes
SAPABX924
STK2424694
PLC2424694
GTIN/EAN4015394040040
Manufacturer part number21160A
Vendor material number21160A
Basic information
Package measurements (L x W x H)127 x 105 x 105 mm
Package volume1.4 l
Package weight0.345 kg
Base uniteach
Package units1 / 5 / 55 / 330
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
