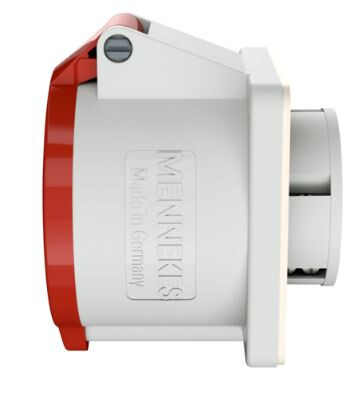

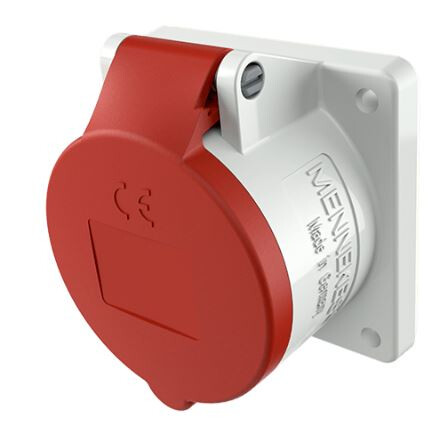

PANELMOUNTED RECEPTACLE 1797 32A5P6H400V IP44 75X75MM
Product code
2424990
Weatherproof power socket 32A 5P 400V. Cover size 75x75 with hole spacing 60x60. Spring terminals. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Panel-mounted CEE socket outlet (IEC 60309) (EC001317)
IEC-amperage32 A
Amperage according to UL/CSA (for UL-version)30 A
Voltage according to EN 60309-2400 V (50+60 Hz) red
Rated voltage399 - 400 V
Rated frequency50 - 60 Hz
Number of poles5
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP44
Connection systemScrewless terminal
Insert directionStraight
MaterialPlastic
Contact materialCuZn
Surface treatment contactsUntreated
Product codes
SAPAED596
STK2424990
PLC2424990
GTIN/EAN4015394212270
Manufacturer part number1797
Vendor material number1797
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume1.076 l
Package weight0.25 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (4)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
