PANELMOUNTED RECEPTACLE 3070 16A5P6H400V IP44 85X85MM
Product code
2425002
Panel mounted recept., 16A5p6h400V, IP44

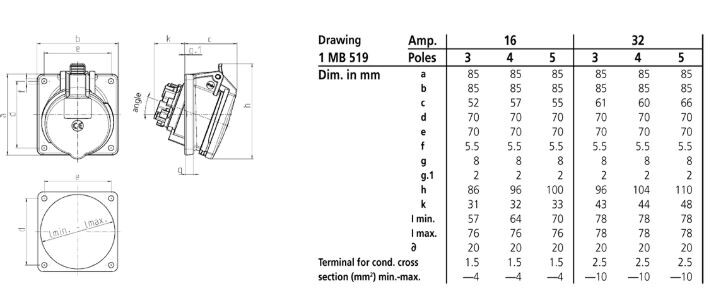

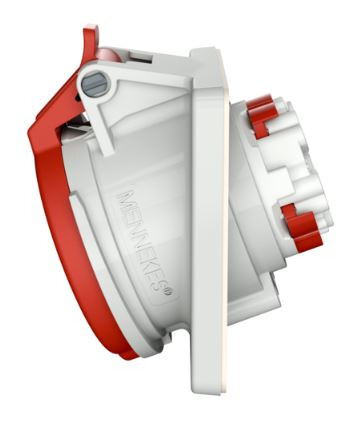

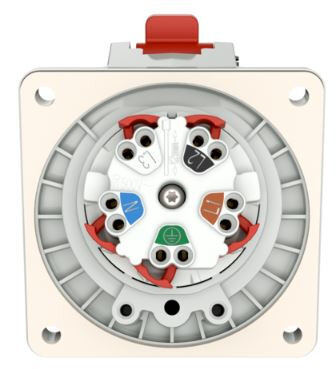

Angled power socket 16A 5P 400V. Socket box size 85x85 with hole spacing 70x70. The socket in the box is tilted 20 degrees. Spring terminals. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Panel-mounted CEE socket outlet (IEC 60309) (EC001317)
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Voltage according to EN 60309-2400 V (50+60 Hz) red
Rated voltage399 - 400 V
Rated frequency50 - 60 Hz
Number of poles5
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP44
Connection systemScrewless terminal
MaterialPlastic
Contact materialCuSn
Surface treatment contactsUntreated
Military modelno
Product codes
SAPAED601
STK2425002
PLC2425002
GTIN/EAN4015394221661
Manufacturer part number3070
Vendor material number3070
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.99 l
Package weight0.2 kg
Base uniteach
Package units10
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
