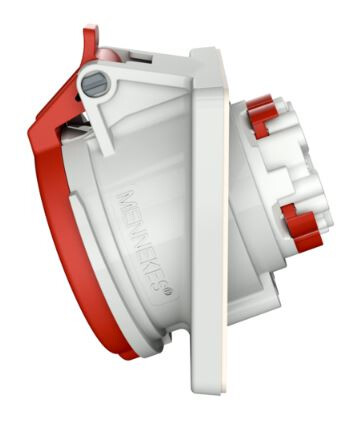

PANELMOUNTED RECEPTACLE 3171 32A5P6H400V IP44 85X85MM
Product code
2425006
Panel mounted recept., 32A5p6h400V, IP44

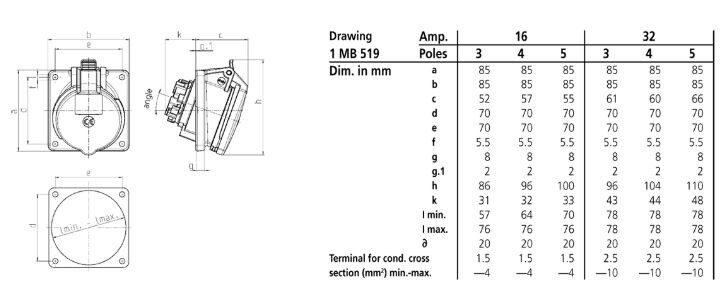

Inclined power socket 32A 5P 400V. Cover size 85x85 mm with hole spacing 70x70 mm. The socket in the cover is tilted 20 degrees. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Panel-mounted CEE socket outlet (IEC 60309) (EC001317)
IEC-amperage32 A
Amperage according to UL/CSA (for UL-version)30 A
Voltage according to EN 60309-2400 V (50+60 Hz) red
Rated voltage399 - 400 V
Rated frequency50 - 60 Hz
Number of poles5
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP44
Connection systemScrewless terminal
MaterialPlastic
Contact materialCuSn
Surface treatment contactsUntreated
Military modelno
Product codes
SAPAED602
STK2425006
PLC2425006
GTIN/EAN4015394221616
Manufacturer part number3171
Vendor material number3171
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume1.346 l
Package weight0.26 kg
Base uniteach
Package units10
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (4)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
