PHASE INVENTER INLET 329 16A5P 6H400V - IP44
Product code
2424702
Phase inverter inlet, 16A5p6h400V, IP44

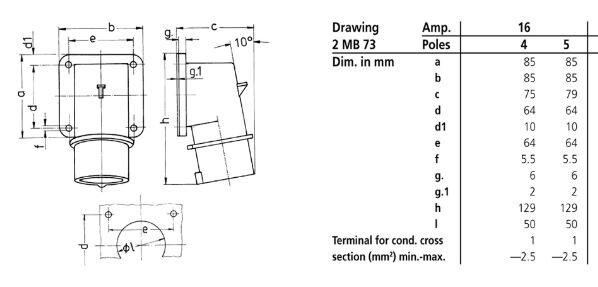

Panel-mounted socket 16A 5P 400V. Panel size 85x85 mm with hole spacing 64x64 mm. Phase switch. Screw terminals.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)CEE appliance inlet (IEC 60309) (EC001319)
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Voltage according to EN 60309-2400 V (50+60 Hz) red
Rated voltage399 - 400 V
Rated frequency50 - 60 Hz
Number of poles5
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP44
Connection systemScrewed terminal
Construction typeSurface mounted device plug
Phase inverteryes
Insert directionRight-angled
MaterialPlastic
Product codes
SAPABV255
STK2424702
PLC2424702
GTIN/EAN4015394002321
Manufacturer part number329
Vendor material number329
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.966 l
Package weight0.21 kg
Base uniteach
Package units10
Package contents–
UNSPSC39121402
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
