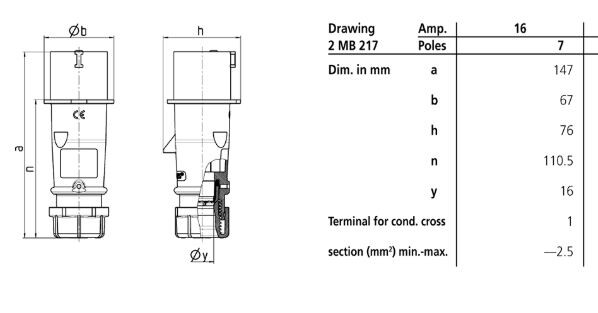

Roll over image to zoom in
PLUG 742 16A7P 6H400V - IP44
Product code
2424727
Plug AM-TOP, 16A7p6h400V, IP44
7-pin power plug 16A 400V. 7-pin power sockets provide solutions for various connections and many challenges: - star-delta connection - open control circuit - closed control circuit - monitoring observation and alarms - alarm reset - electrical lock. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE plug (IEC 60309) (EC000140)
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Number of poles7
Voltage according to EN 60309-2400 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
RAL-number3013
Phase inverterno
Degree of protection (IP)IP44
Connection systemScrewed terminal
Cable entryAnti-kink sleeve
Insert directionStraight
MaterialPlastic
Contact materialCuZn
Military modelno
Product codes
SAPABV271
STK2424727
PLC2424727
GTIN/EAN4015394005674
Manufacturer part number742
Vendor material number742
Basic information
Package measurements (L x W x H)150 x 70 x 70 mm
Package volume0.735 l
Package weight0.2 kg
Base uniteach
Package units1 / 10 / 1520
Package contents–
UNSPSC39121402
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (4)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
