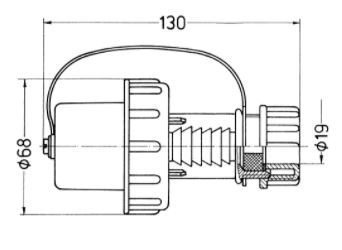

PLUG MENNEKES 10828 16A2p 230V IP68
Product code
2425143
Plug with a mounting flange for securing the plug to the socket. Suitable for socket 24 251 40, ensuring a tight IP68 connection between socket and plug. Screw connections in the plug. Protective cap on the plug to protect the connection when the plug is not in use. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Plug with protective contact (EC000242)
MaterialPlastic
Material qualityThermoplastic
Degree of protection (IP)IP68
Insert directionStraight
Connection systemScrewed terminal
ColourBlue
Number of poles2
Nominal voltage230 V
Nominal current16 A
Degree of protection (NEMA)Other
NEMA designationOther
Adaptor plugno
Product codes
SAPCNH610
STK2425143
PLC2425143
GTIN/EAN4015394035510
Manufacturer part number10828
Vendor material number10828
Basic information
Package measurements (L x W x H)125 x 67 x 67 mm
Package volume0.561 l
Package weight0.14 kg
Base uniteach
Package units1 / 5 / 10 / 1040
Package contents–
UNSPSC39121402
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (4)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
