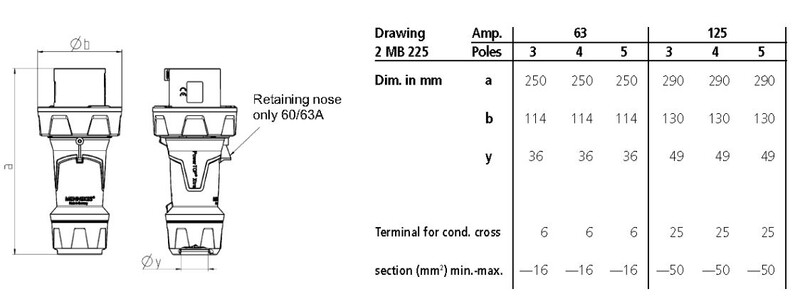

POWER PLUG 13225 125A5P6H400V IP67
Product code
2425104
POWERTOP® XTRA R 13225 screw connectors:
- rubber contact area
- robust heat-resistant contact holder
- nickel-plated contacts
- cable entry and seal
- strain relief and twist protection
- twist lock in housing
- two safety latches This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE plug (IEC 60309) (EC000140)
IEC-amperage125 A
Amperage according to UL/CSA (for UL-version)100 A
Number of poles5
Voltage according to EN 60309-2400 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
RAL-number3013
Phase inverterno
Degree of protection (IP)IP67
Connection systemScrewed terminal
Cable entryGland nut
Insert directionStraight
MaterialPlastic
Contact materialCuZn
Surface treatment contactsNickel-plated
Product codes
SAPAEV783
STK2425104
PLC2425104
GTIN/EAN4015394240808
Manufacturer part number13225
Vendor material number13225
Basic information
Package measurements (L x W x H)300 x 140 x 140 mm
Package volume5.88 l
Package weight1.518 kg
Base uniteach
Package units1 / 5 / 10 / 160
Package contents–
UNSPSC39121402
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
