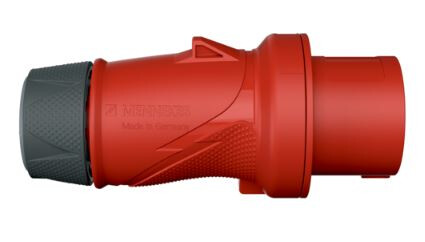

POWER PLUG POWERTOPXTRA 13506 16A4P6H400V IP54

Product code
2425148

POWERTOP® XTRA ERGOCONTACT® SOCKET 13506. Regardless of the version or application, the PowerTOP® Xtra plug ensures proven success factors: ergonomic design, easy installation, safe and seamless connection.

The PowerTOP® Xtra plug meets IP54 protection class requirements, providing protection not only against splashing water but also exceptionally well against dust.

Features
  • Screw connection technology ErgoCONTACT®
  • ergonomic housing design with contoured grip areas
  • rubberized cable entry with seal
  • strain relief and torsion protection
  • rotary lock and safety latch
  • space for self-adhesive labels
  • the future speaks PowerTOP® Xtra language: the PowerTOP® Xtra plug replaces the ProTOP plug 152A

Redesigned power plug. Available in screw connection and quick-connect versions. A high-quality and durable product. Screw connectors ErgoCONTACT®.

This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)CEE plug (IEC 60309) (EC000140)
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Number of poles4
Voltage according to EN 60309-2400 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
RAL-number3013
Phase inverterno
Degree of protection (IP)IP54
Connection systemScrewed terminal
Cable entryGland nut
Insert directionStraight
MaterialPlastic
Contact materialCuZn
Surface treatment contactsUntreated

Product codes

SAPCXY663
STK2425148
PLC2425148
GTIN/EAN4015394296713
Manufacturer part number13506
Vendor material number13506

Basic information

Package measurements (L x W x H)170 x 70 x 70 mm
Package volume0.833 l
Package weight0.3 kg
Base uniteach
Package units1 / 10
Package contents
UNSPSC39121402
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH

Environment and safety

Manufacturer

NameMENNEKES Elektrotechnik GmbH & Co. KG
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
