POWER PLUG POWERTOPXTRA 13523-32A5P6H400V IP54
Product code
2425117

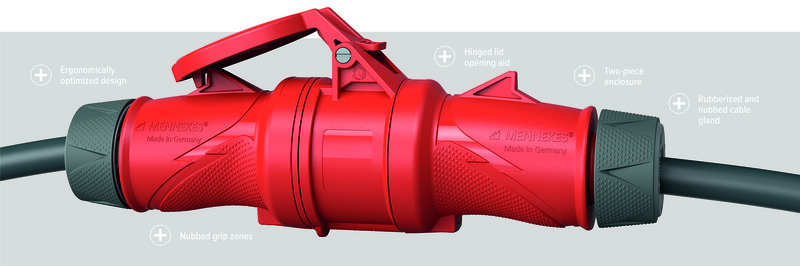

PowerTOPXtra Redesigned power plug. The range includes both screw connection and quick-connect versions. High-quality and durable product. Quick-connects SafeCONTACT. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE plug (IEC 60309) (EC000140)
IEC-amperage32 A
Amperage according to UL/CSA (for UL-version)30 A
Number of poles5
Voltage according to EN 60309-2400 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
RAL-number3013
Phase inverterno
Degree of protection (IP)IP54
Connection systemScrewless terminal
Cable entryGland nut
Insert directionStraight
MaterialPlastic
Contact materialCuSn
Military modelno
Product codes
SAPCLJ759
STK2425117
PLC2425117
GTIN/EAN4015394289302
Manufacturer part number13523
Vendor material number13523
Basic information
Package measurements (L x W x H)200 x 95 x 80 mm
Package volume1.52 l
Package weight0.4 kg
Base uniteach
Package units1 / 10 / 540
Package contents–
UNSPSC39121402
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (4)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
