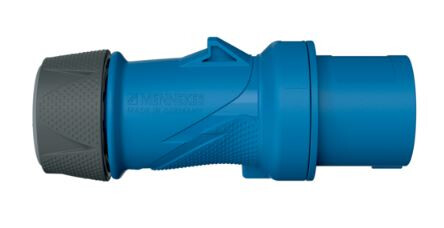

POWER PLUG POWERTOPXTRA 16A3P 6H230V - IP54
Product code
2425124
One product family for all applications – the PowerTOP® Xtra product family now also covers 16 A currents. New 16 A variants for professional to professional:
- 3 P plugs and extension sockets
- 5 P plugs and extension sockets for different voltages
- 5 P plugs and extension sockets with heat-resistant and nickel-plated contacts
Regardless of configuration and application area, all PowerTOP® Xtra plugs impress with proven and tested features: ergonomic design, ease of installation, safe and easy connection, and X-CONTACT® inside. Thanks to innovative contact pins, connecting and disconnecting is light and effortless. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE plug (IEC 60309) (EC000140)
IEC-amperage16 A
Number of poles3
Voltage according to EN 60309-2230 V (50+60 Hz) blue
Clock hour position6 h
Identification colourBlue
Phase inverterno
Degree of protection (IP)IP54
Connection systemScrewless terminal
Cable entryGland nut
MaterialPlastic
Military modelno
Product codes
SAPCMI100
STK2425124
PLC2425124
GTIN/EAN4015394293804
Manufacturer part number13521
Vendor material number13521
Basic information
Package measurements (L x W x H)154 x 58 x 55 mm
Package volume0.491 l
Package weight0.183 kg
Base uniteach
Package units1 / 10 / 1120
Package contents–
UNSPSC39121402
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
