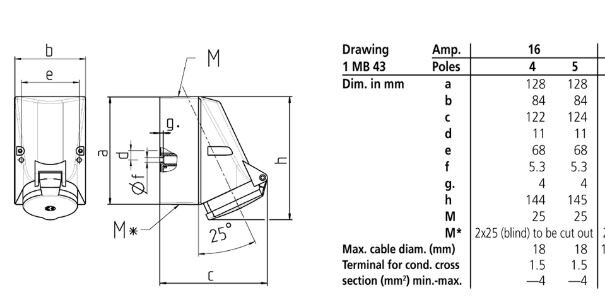

RECEPTACLES TWINCONTACT 419 16A5P400V IP44 CHAIN
Product code
2424871
Surface-mounted power socket 16A 5P 400V. One cable entry at the top of the box. Two accessible cable entries at the bottom of the box and one cable entry also at the base of the box. Spring terminals. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE socket outlet (IEC 60309) (EC001321)
Mounting methodSurface mounted
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Number of poles5
Voltage according to EN 60309-2380-415 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
RAL-number3013
Housing colourGrey
Degree of protection (IP)IP44
Connection systemScrewless terminal
Cable entryGland nut
MaterialPlastic
Type of fasteningInner lying mounting
Insulated mountingno
Product codes
SAPACZ754
STK2424871
PLC2424871
GTIN/EAN6410024248717
Manufacturer part number419
Vendor material number419
Basic information
Package measurements (L x W x H)145 x 84 x 120 mm
Package volume1.462 l
Package weight0.294 kg
Base uniteach
Package units1 / 10 / 540
Package contents–
UNSPSC39121308
BrandMENNEKES
VendorMENNEKES ELEKTROTECHNIK GMBH
Documents (5)
Brochures & documents
Links
Environment and safety
Manufacturer
NameMENNEKES Elektrotechnik GmbH & Co. KG
Websitehttps://www.mennekes.org/
Postal addressAloys-Mennekes-Straße 1, D-57399 KIRCHHUNDEM
