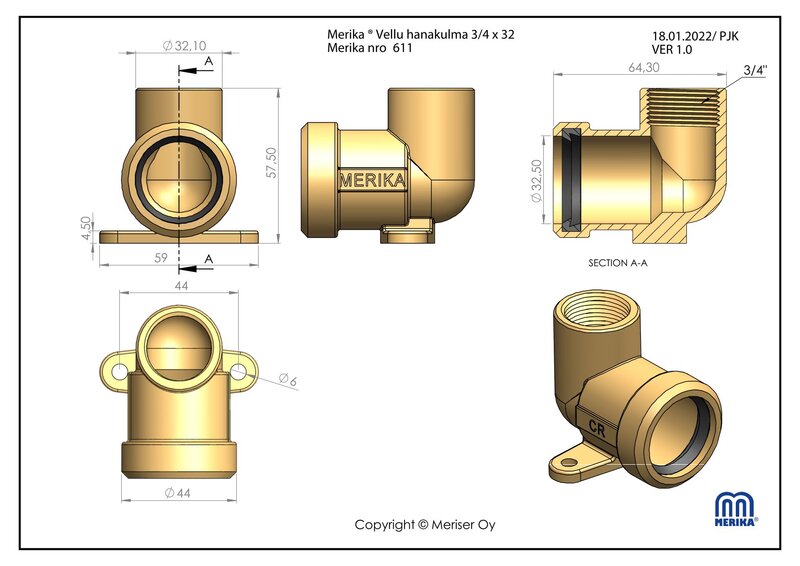

DRAINING WALL ELBOW 3/4x32mm FT BRASS
Product code
2372444
Messinkinen concealed installation drain angle for the washing machine. The drain angle needs, for example, an Oras 173 waste water connection to route the drainage outside the wall.
Meriser is known for its continuous product development and high-quality Merika products. Product development is carried out continuously with VTT, which tests and monitors the quality and functionality of the products. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Wall plate (EC003099)
Housing materialBrass
Surface protectionUntreated
ShapeRight-angled
Nominal diameter connection 13/4 inch (20)
Outer pipe diameter connection 132 mm
Nominal diameter connection 2Other
Outer pipe diameter connection 232 mm
ConnectionOther
Thread size tap connection3/4 inch
Product codes
SAPAAF931
HPAC2372444
PLC2372444
GTIN/EAN6415895125440
Manufacturer part number611
Vendor material number611
Basic information
Package measurements (L x W x H)68 x 44 x 64 mm
Package volume0.191 l
Package weight0.235 kg
Base uniteach
Package units1 / 50
Package contents–
UNSPSC40141720
BrandMERIKA
VendorMERISER OY
The country of origin stated by the supplierFinland
Documents (8)
Environment and safety
Features
Made from PVCNo
Warranty (years)2
RecyclableYes
