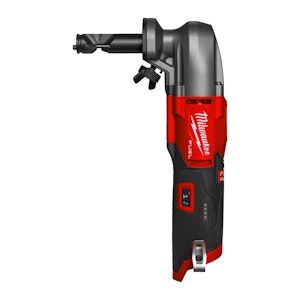

BATTERY NIBBLER MILWAUKEE M12 FNB16-0
Product code
CWG010
The M12 FUEL 1.6 mm punch has adjustable speed for optimal control. The maximum cutting capacity of the 12V battery punch is 1.6 mm for mild steel, 1.2 mm for stainless steel, and 2.1 mm for aluminum. Suitable for drilling soft and hard wood, joists and intermediate beams, flooring, particleboard, and plywood. The Lewis groove design accelerates chip removal. The hex shank ensures a secure grip. The lightest 1.6 kg battery punch on the market (with 4.0 Ah battery). Tool-free 90-degree cutting direction adjustment. Tool-free matrix and punch replacement. The chip collection bag keeps the work environment clean. LED work light. Weight with battery: 1.6 kg (with 4.0 Ah battery). Supplied in a cardboard box (without batteries or charger). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Nibbler (battery) (EC003278)
Nominal voltage12 V
Battery capacity0 Ah
Number of included batteries0
With battery chargerno
Weight including battery-pack1.6 kg
Weight without battery-pack1.6 kg
Max. material thickness in steel 400 N/mm²1.6 mm
Max. material thickness in steel 600 N/mm²1.6 mm
Max. material thickness in steel 800 N/mm²1.6 mm
Max. material thickness in aluminium 250 N/mm²2.1 mm
Lowest radius40.7 mm
Start hole diameter21 mm
Cutting trail width5 mm
No-load stroke rate1400 - 2200 1/min
Vibration emission value ah (cutting sheet metal)6.9 m/s²
Product codes
SAPCWG010
HPACCWG010
PLCCWG010
GTIN/EAN4058546374112
Manufacturer part number4933479617
Vendor material number4933479617
Basic information
Package measurements (L x W x H)93 x 70 x 273 mm
Package volume1.777 l
Package weight2.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC27112724
BrandMILWAUKEE
VendorTECHTRONIC INDUSTRIES NORDIC APS
Documents (7)
Environment and safety
Sustainability categories
Energy efficiency
Features
Manual contains maintenance advice for the userYes
Brushless DC motor technologyYes
Modular replaceable battery or part of a shared battery systemYes
Supplier is a member of RMIYes
Manufacturer
NameTechtronic Industries Nordic ApS
Postal addressStamholmen 147, DK-2650 Hvidovre, Tanska
