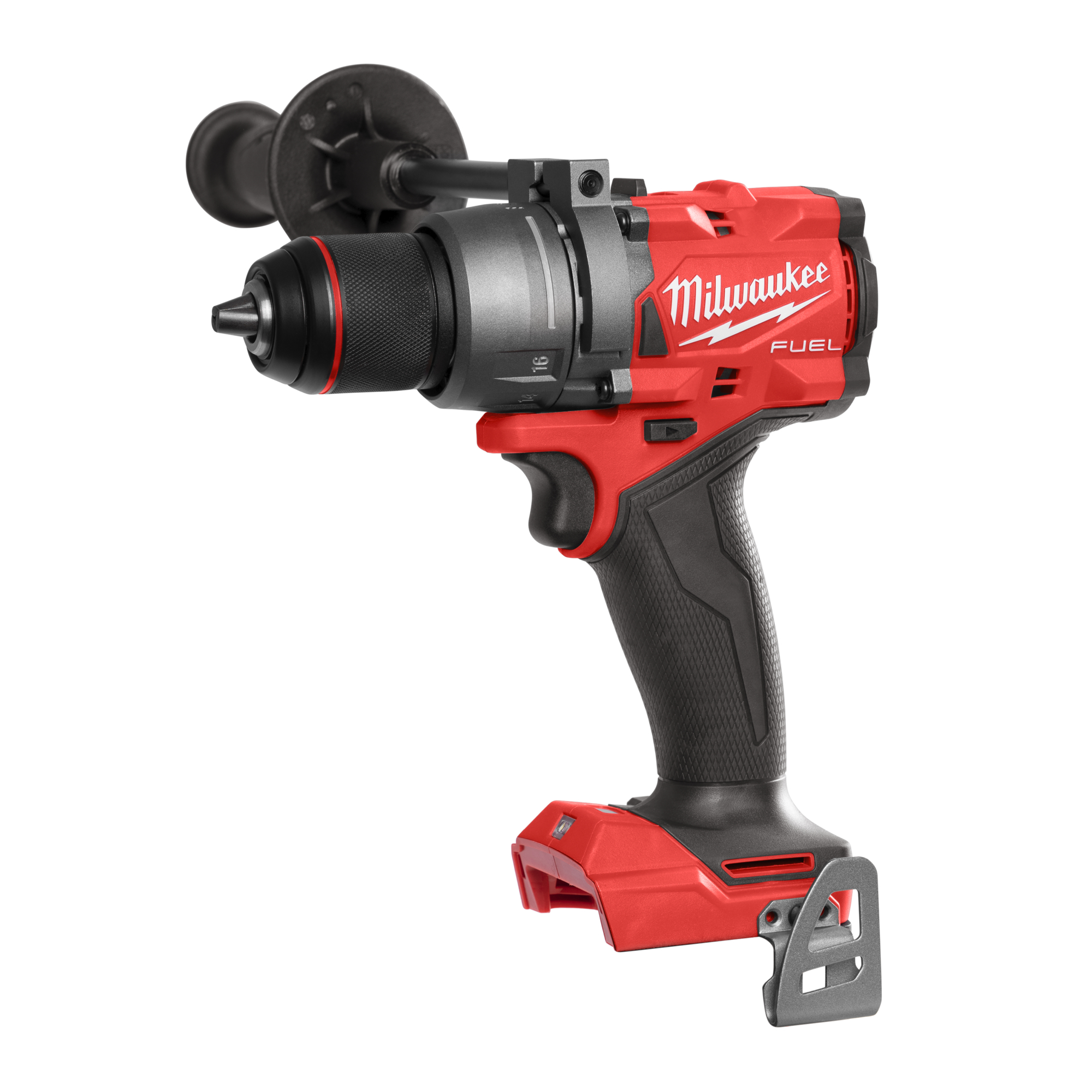

BAT PERCUSSION DRILL MILWAUKEE M18 FPD3-0
Product code
DCB740
Compact M18 FUEL hammer drill with brushless POWERSTATE motor. 158 Nm torque. Extremely compact 175 mm length. No-load speed 0-550/0-2100 rpm and 0-33,000 blows/min. REDLINK PLUS electronics protect the tool and AUTOSTOP kickback protection safeguards the user. LED work light and battery fuel gauge. Belt hook. Max drilling capacity in wood/steel/masonry: 89/16/16 mm. Weight with battery 2.2 kg. Supplied without batteries and charger. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Hammer drill (battery) (EC001391)
Nominal voltage18 V
Battery capacity0 Ah
Number of included batteries0
With battery chargerno
Weight including battery-pack2.2 kg
Weight without battery-pack2.2 kg
Drill diameter concrete 1st gear0 mm
Drill diameter concrete 2nd gear16 mm
Drill diameter concrete 3rd gear16 mm
Max. torque158 Nm
Max. number of strokes33000 1/min
Drill diameter steel 1st gear16 mm
Drill diameter steel 2nd gear16 mm
Drill diameter steel 3rd gear16 mm
Drill diameter stone 1st gear0 mm
Product codes
SAPDCB740
PLCDCB740
GTIN/EAN4058546512200
Manufacturer part number4933498060
Vendor material number4933498060
Basic information
Package measurements (L x W x H)218 x 115 x 286 mm
Package volume7.17 l
Package weight2.2 kg
Base uniteach
Package units1 / 6 / 48
Package contents–
UNSPSC27112703
BrandMILWAUKEE
VendorTECHTRONIC INDUSTRIES NORDIC APS
Documents (7)
Environment and safety
Sustainability categories
Energy efficiency
Features
Availability of spare parts after discontinuation (years)8
Manual contains maintenance advice for the userYes
Brushless DC motor technologyYes
Modular replaceable battery or part of a shared battery systemYes
Audited sustainable sourcingYes
Takeback and recycling of batteryYes
Supplier is a member of RMIYes
Manufacturer
NameTechtronic Industries Nordic ApS
Postal addressStamholmen 147, DK-2650 Hvidovre, Tanska
