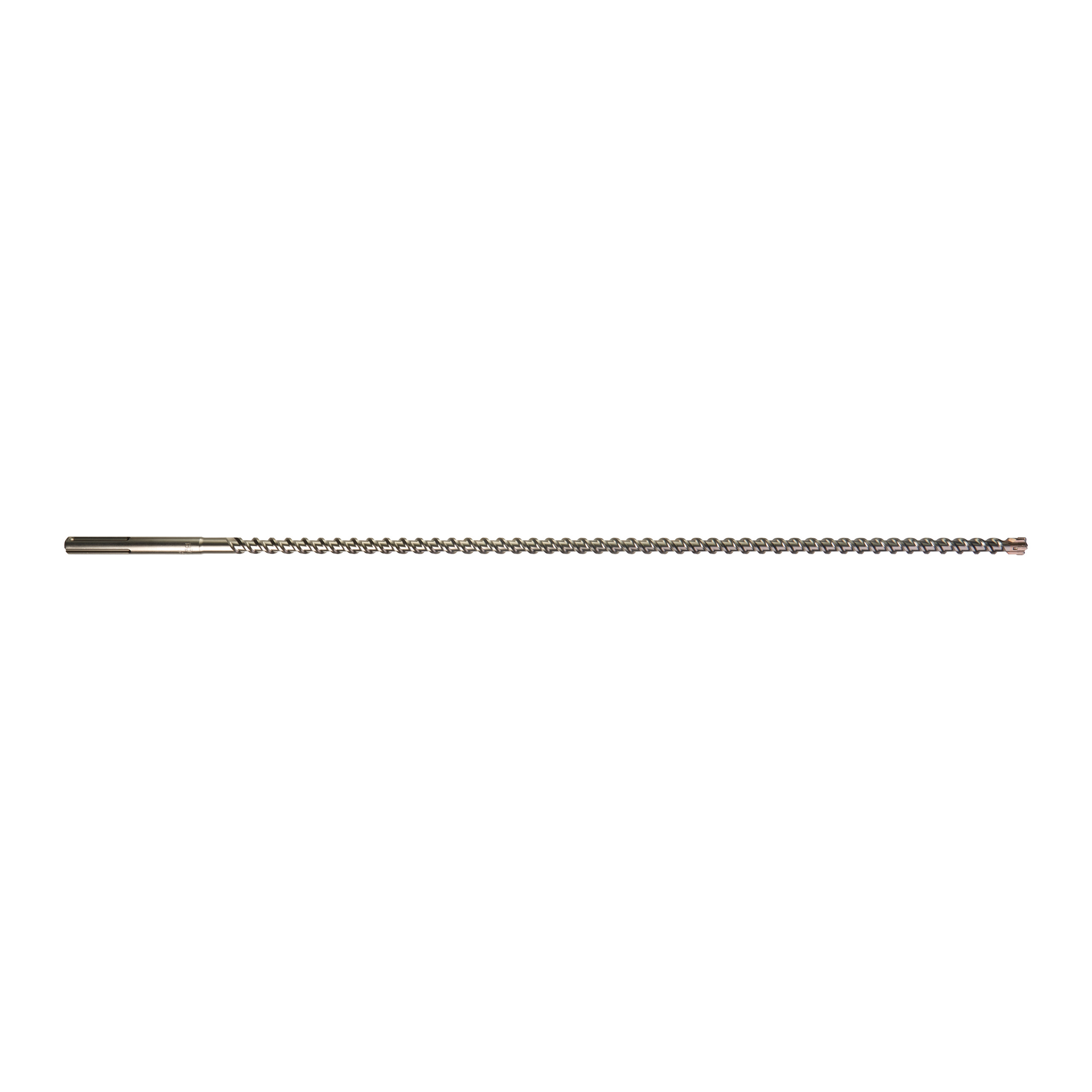

HAMMARBORR SDS-MAX 18X940MM 4932352762
Product code
CBQ655
Large carbide tip with patented flutes for reinforced concrete. Ensures low vibration levels and optimal performance when drilling into reinforced concrete. Longer service life. Purpose-designed, durable tip shape with optimal 4 x 90° tip symmetry. Prevents jamming when hitting reinforcement. Central tip with 130° point angle. Improves centering accuracy and control during drilling.
Large, durable secondary cutting head with dynamic, curved cutting edge. Supports the main cutting tip during rapid drilling. Shorter helix. Removes drill dust from the tip faster. This reduces wear and heat buildup at the tip. Innovative, unique carbide tip. Thicker carbide coating on all flutes, especially thick on flutes with Ø > 32 mm.
Wear indicator on both sides of the main cutting tip. Indicates the tool’s service life with guaranteed diameter accuracy (within warranty). Patented, reinforced shank design. Reduces vibration and enables smoother drilling. Stronger shank, fewer breakages. Better power transfer to the tip. Large chip flutes. Enable removal of larger volumes of drill dust from the hole. This improves performance and prevents overheating and wear.
Low vibration level. The tool’s ergonomic design reduces user and machine fatigue. Special surface treatment. Sandblasting produces a uniform surface. Densifies the surface structure and makes the tool more wear-resistant. Meets PGM criteria. Ensures precise holes throughout the tool’s entire service life. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Drill (EC000945)
Suitable for woodno
Suitable for steelno
Suitable for stainless steelno
Suitable for nonferrous metalsno
Suitable for cast ironno
Suitable for stoneno
Suitable for concreteyes
Suitable for glassno
Suitable for plasticno
Diameter drill18 mm
Cutting edge length800 mm
Total length940 mm
Holding systemSDS-max
Plug-in axle with flat endyes
With centre drillno
Product codes
SAPCBQ655
HPACCBQ655
PLCCBQ655
GTIN/EAN4002395374205
Manufacturer part number4932352762
Vendor material number4932352762
Basic information
Package measurements (L x W x H)950 x 40 x 30 mm
Package volume1.14 l
Package weight1.164 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC27111509
BrandMILWAUKEE
VendorTECHTRONIC INDUSTRIES NORDIC APS
