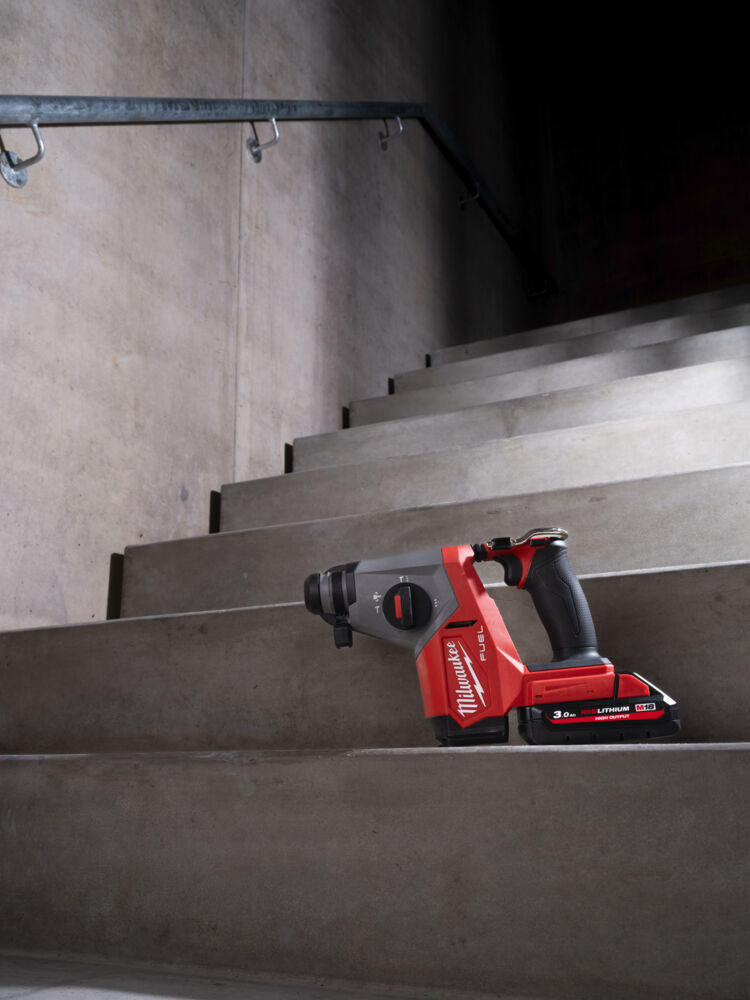

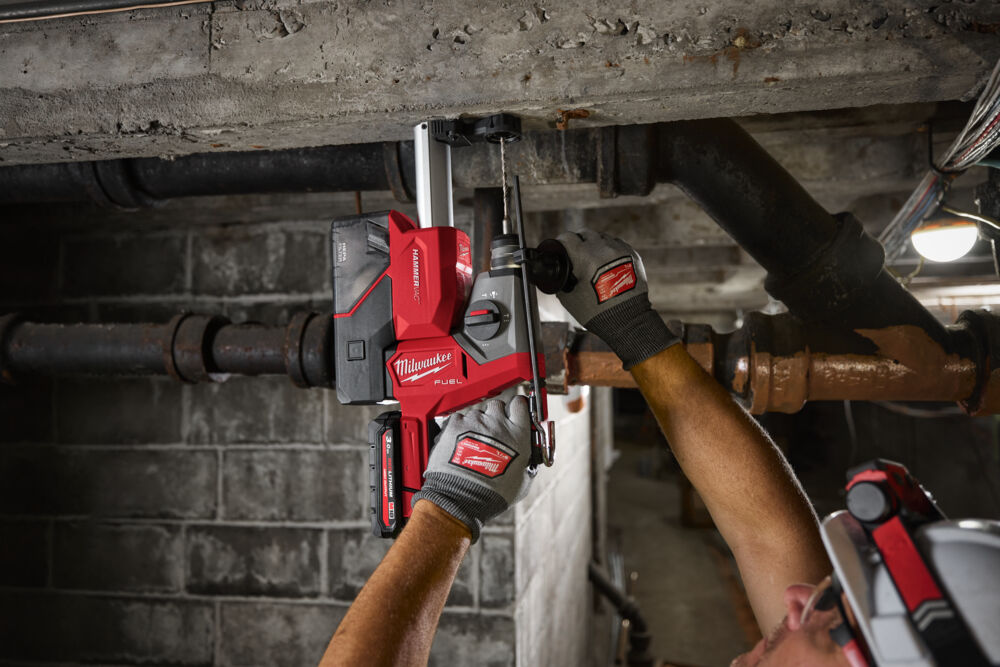

HAMMER DRILL MILWAUKEE M18 FHAC16-302X
Product code
DJK199
MILWAUKEE® M18 FUEL™ compact 16 mm SDS-Plus hammer drill. Powerful hammering mechanism and brushless motor deliver 1.7 J impact energy. The most compact and fastest hammer drill in its class. AUTOSTOP™ function automatically cuts power to protect the user. Anti-vibration system (AVS). 4 modes: hammer drilling, drilling without hammering, chiseling, and variolock mode. Compatible with M18 FDDEC dust extractor. Weight without battery: 1.9 kg. Includes 2 x 3.0 Ah REDLITHIUM™ HIGH OUTPUT™ batteries, 36-minute M12-18 FC fast charger, and HD Box case. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Rotary hammer (battery) (EC001367)
Nominal voltage18 V
Battery capacity3 Ah
Number of included batteries2
With battery chargeryes
Weight including battery-pack2.6 kg
Idle rotational speed0 - 1400 1/min
Max. number of strokes5080 1/min
Max. single-blow energy1.7 J
Tool insertionSDS-plus socket
Drill diameter in concrete16 mm
Vibration emission value ah (hammer drilling in concrete)13.6 m/s²
Vibration uncertainty K (hammer drilling in concrete)1.5 m/s²
Sound pressure level94 dB(A)
Sound power level102 dB(A)
Sound pressure uncertainty K3 dB
Product codes
SAPDJK199
PLCDJK199
GTIN/EAN4058546524531
Manufacturer part number4933498584
Vendor material number4933498584
Basic information
Package measurements (L x W x H)475 x 180 x 362 mm
Package volume30.951 l
Package weight6.73 kg
Base uniteach
Package units1
Package contents–
UNSPSC27112703
BrandMILWAUKEE
VendorTECHTRONIC INDUSTRIES NORDIC APS
