CABLE LADDER 3 M 102S FE C2 200X56 3M EZN
Product code
1467000
3-meter shelves are used in locations where installation and storage of 6-meter shelving units is difficult.
The S-series shelves offer a competitive solution for applications that do not require high climate resistance. The products combine an affordable price with reliable load capacity. A simple mounting system ensures quick installation and efficient use of additional accessories on site.

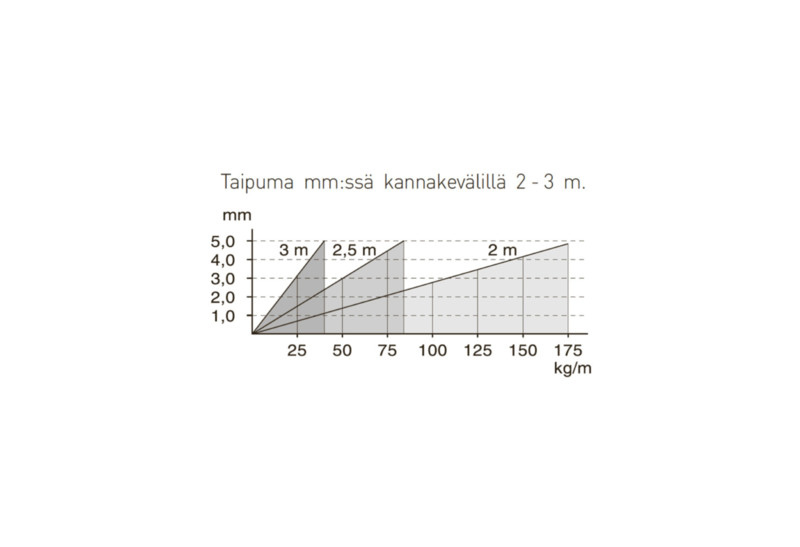

Load capacity of 35 kg/m with 5 mm deflection over a 3-meter span. Ultimate safety factor ≥ 1.7 times the maximum load according to EN 61537:2007 standard. Meets EL AMA 98 requirements for heavy-duty cable shelves. The shelves and suspension system have been tested in accordance with TBE 102:2 requirements. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable ladder (EC000854)
Type of side joistProfile (open)
Side perforationyes
Type of rungPerforated profile
Fixation rungWelded
Height56 mm
Width200 mm
Length3000 mm
Working length3000 mm
Usable cross section6400 mm²
Suitable for circuit integrityyes
Rung centre spacing250 mm
Vertical cable ladderno
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised
Product codes
SAPANM045
STK1467000
PLC1467000
GTIN/EAN7394333000183
Manufacturer part numberMP-102S
Vendor material number1467000
Basic information
Package measurements (L x W x H)1000 x 200 x 56 mm
Package volume11.2 l
Package weight1.72 kg
Base unitMeter
Package units3 / 18 / 288
Package contents–
UNSPSC39131703
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.6268
GWP, unitMeter
Source for GWP dataEPD
