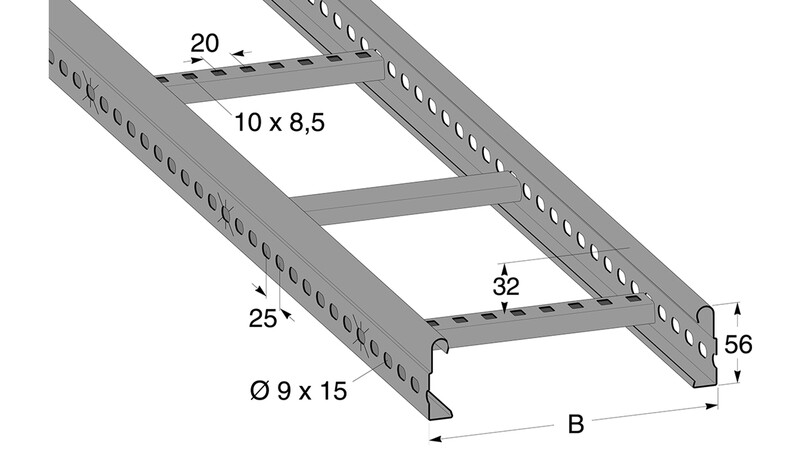

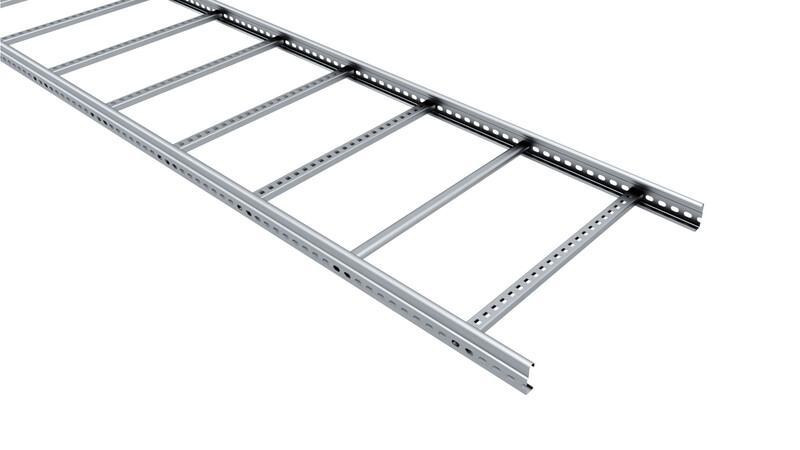

CABLE LADDER 3 M 105LS FE C2 EZN 500X56X3000
Product code
1474522
The LS-series light-duty shelves are a competitive option for applications that do not require high climate resistance ratings or heavy-duty shelf load capacity. The lighter, more environmentally friendly structure simplifies installation. A simple mounting system ensures quick installation and efficient use of additional accessories on site. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable ladder (EC000854)
Type of side joistProfile (open)
Side perforationyes
Type of rungPerforated profile
Fixation rungWelded
Height56 mm
Width500 mm
Length3000 mm
Working length3000 mm
Usable cross section15500 mm²
Suitable for circuit integrityno
Rung centre spacing25 mm
Vertical cable ladderno
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised
Product codes
SAPDCF876
STK1474522
PLC1474522
GTIN/EAN7394333000657
Manufacturer part numberMP-105LS
Vendor material number1474522
Basic information
Package measurements (L x W x H)1000 x 500 x 56 mm
Package volume28 l
Package weight1.833 kg
Base unitMeter
Package units3 / 18 / 72 / 288
Package contents–
UNSPSC39131703
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.9308
GWP, unitMeter
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
