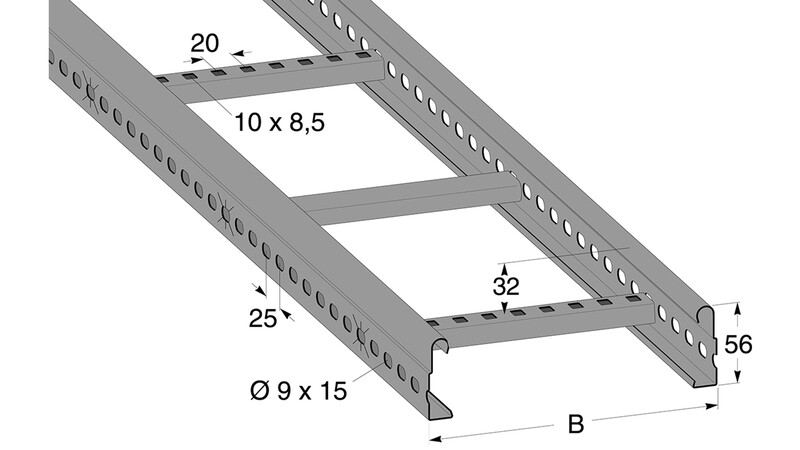

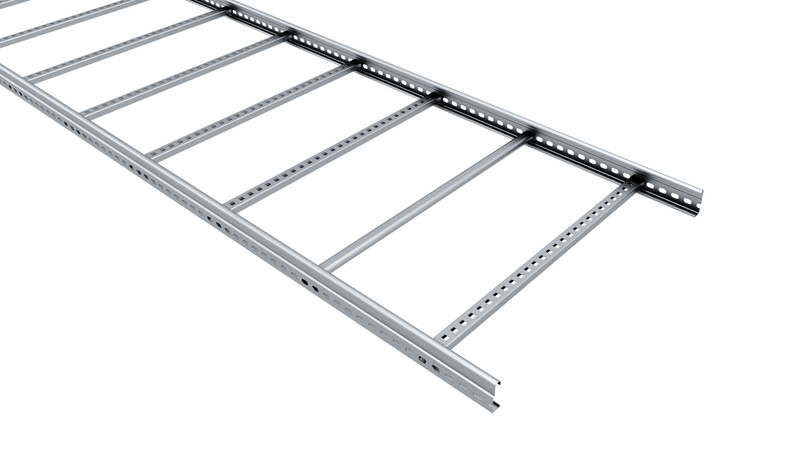

CABLE LADDER 3 M 106LS FE C2 EZN 600X56X3000
Product code
1474523
The LS-series light-duty shelves are a competitive option for applications that do not require high climate resistance ratings or heavy-duty shelf load capacity. The lighter, more environmentally friendly structure simplifies installation. A simple mounting system ensures quick installation and efficient use of additional accessories on site. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable ladder (EC000854)
Type of side joistProfile (open)
Side perforationyes
Type of rungPerforated profile
Fixation rungWelded
Height56 mm
Width600 mm
Length3000 mm
Working length3000 mm
Usable cross section18600 mm²
Suitable for circuit integrityno
Rung centre spacing25 mm
Vertical cable ladderno
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised
Product codes
SAPDCF877
STK1474523
PLC1474523
GTIN/EAN7394333000664
Manufacturer part numberMP-106LS
Vendor material number1474523
Basic information
Package measurements (L x W x H)1000 x 600 x 56 mm
Package volume33.6 l
Package weight1.983 kg
Base unitMeter
Package units3 / 18 / 72 / 288
Package contents–
UNSPSC39131703
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)5.3343
GWP, unitMeter
Source for GWP dataEPD
