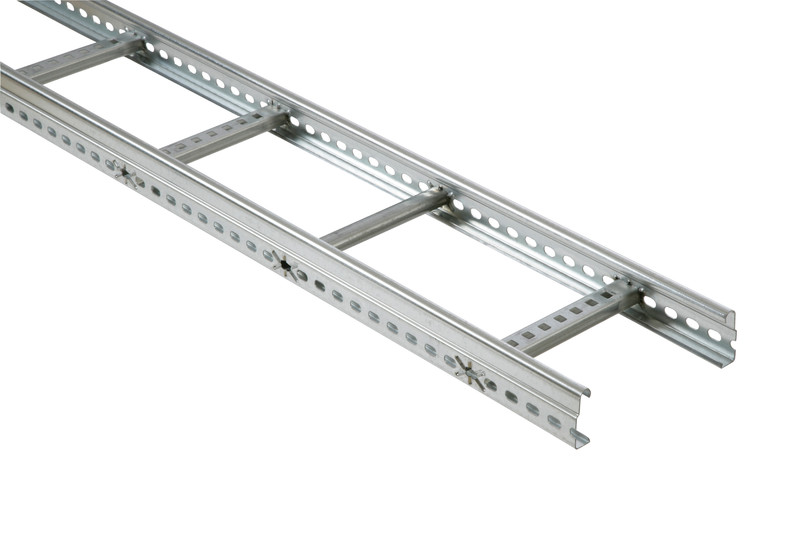

CABLE LADDER 3 M 106S FE C2 600X56 3M EZN

Product code
1467008
3-meter shelves are used in locations where installation and storage of 6-meter shelving units is difficult. S-series shelves are the most competitive option for applications that do not require high climate resistance ratings. The products combine an affordable price with reliable load capacity. A simple mounting system ensures quick installation and efficient use of additional accessories on site. Load capacity of 35 kg/m with 5 mm deflection over a 3-meter span. Ultimate safety factor ≥ 1.7 times the maximum load according to EN 61537:2007 standard. Meets EL AMA 98 requirements for heavy-duty cable shelves. Shelves and suspension system have been tested in accordance with TBE 102:2 requirements. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Cable ladder (EC000854)
Type of side joistProfile (open)
Side perforationyes
Type of rungPerforated profile
Fixation rungWelded
Height56 mm
Width600 mm
Length3000 mm
Working length3000 mm
Usable cross section18800 mm²
Suitable for circuit integrityyes
Rung centre spacing250 mm
Vertical cable ladderno
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised

Product codes

SAPANM053
STK1467008
PLC1467008
GTIN/EAN7394333000503
Manufacturer part numberMP-106S
Vendor material number1467008

Basic information

Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume33.6 l
Package weight2.397 kg
Base unitMeter
Package units3 / 18 / 72
Package contents
UNSPSC39131703
BrandMP BOLAGEN
VendorMP BOLAGEN OY

Documents (4)

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)6.4479
GWP, unitMeter
Source for GWP dataEPD
