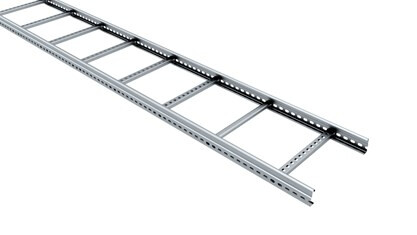

CABLE LADDER 6 M 103LS6 FE C2 EZN 300X56X6000
Product code
1474515
The LS-series light-duty shelves are a competitive option for applications that do not require high climate resistance ratings or heavy-duty shelf load capacity. The lighter, more environmentally friendly structure simplifies installation. A simple mounting system ensures quick installation and efficient use of additional accessories on site. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications

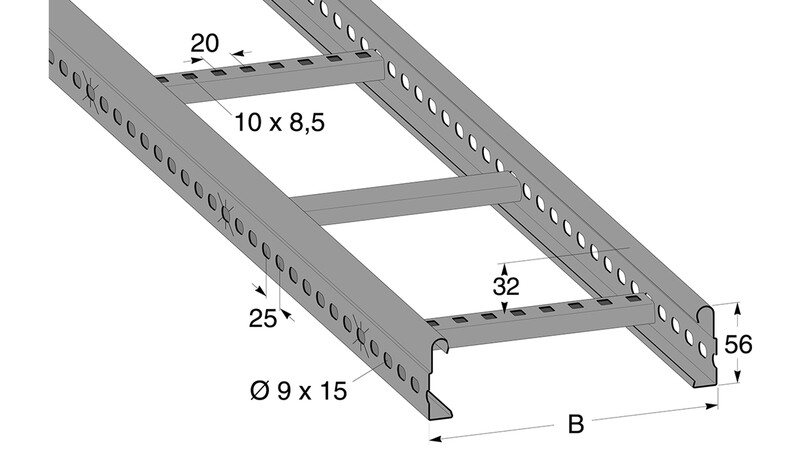

Product class (ETIM)Cable ladder (EC000854)
Type of side joistProfile (open)
Side perforationyes
Type of rungPerforated profile
Fixation rungWelded
Height56 mm
Width300 mm
Length6000 mm
Working length6000 mm
Usable cross section9200 mm²
Suitable for circuit integrityyes
Rung centre spacing25 mm
Vertical cable ladderno
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised
Product codes
SAPCZX525
STK1474515
PLC1474515
GTIN/EAN7394333000237
Manufacturer part numberMP-103LS6
Vendor material number1474515
Basic information
Package measurements (L x W x H)1000 x 300 x 56 mm
Package volume16.8 l
Package weight1.377 kg
Base unitMeter
Package units6 / 60
Package contents–
UNSPSC39121206
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.7041
GWP, unitMeter
Source for GWP dataEPD
