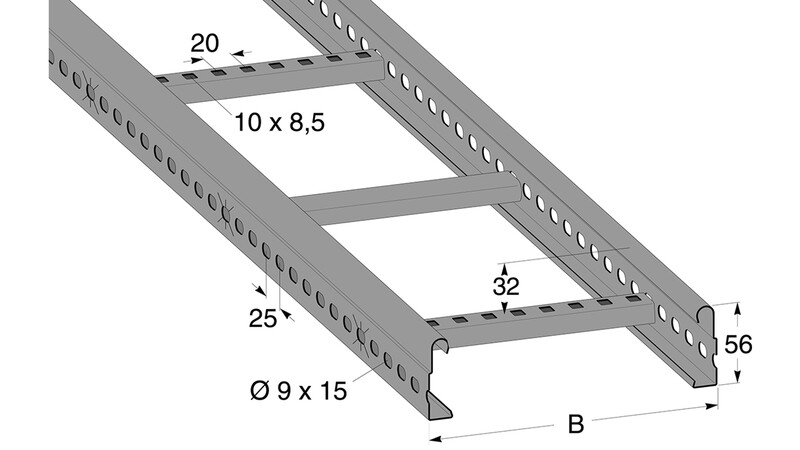

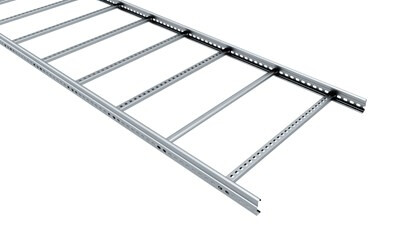

CABLE LADDER 6 M 106LS6 FE C2 EZN 600X56X6000
Product code
1474518
The LS-series light-duty shelves are a competitive option for applications that do not require high climate resistance ratings or heavy-duty shelf load capacity. The lighter, more environmentally friendly structure simplifies installation. A simple mounting system ensures quick installation and efficient use of additional accessories on site. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable ladder (EC000854)
Type of side joistProfile (open)
Side perforationyes
Type of rungPerforated profile
Fixation rungWelded
Height56 mm
Width600 mm
Length6000 mm
Working length6000 mm
Usable cross section18800 mm²
Suitable for circuit integrityyes
Rung centre spacing25 mm
Vertical cable ladderno
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised
Product codes
SAPCZX528
STK1474518
PLC1474518
GTIN/EAN7394333000527
Manufacturer part numberMP-106LS6
Vendor material number1474518
Basic information
Package measurements (L x W x H)1000 x 600 x 56 mm
Package volume201.6 l
Package weight2.05 kg
Base unitMeter
Package units60
Package contents–
UNSPSC39121206
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)5.5145
GWP, unitMeter
Source for GWP dataEPD
