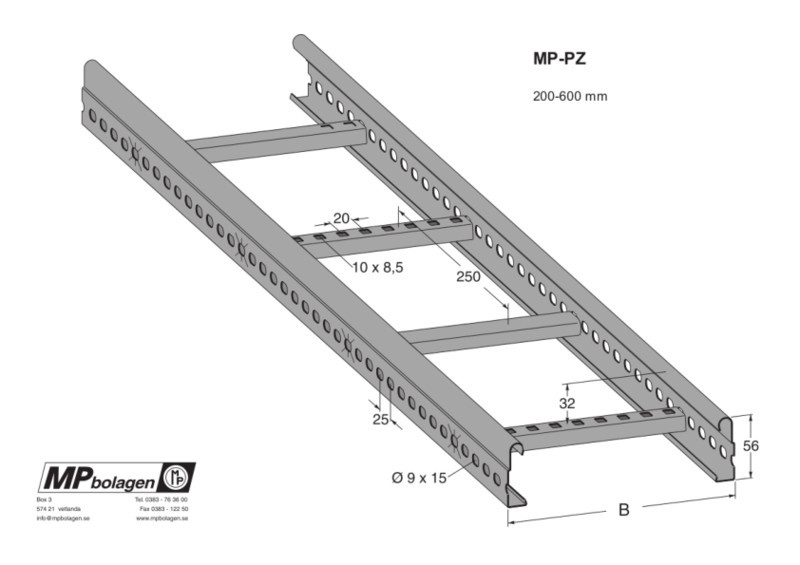

CABLE LADDER 6 M 156PZ4 FE C4 Z4 600X56X6000

Product code
1406817
PZ4 series wire shelving units are the longest-lasting option for applications requiring high climate resistance classes, such as chemical industries, swimming pools, and shipyards. The new Z4 coating is more environmentally friendly and more corrosion-resistant than 85 µm hot-dip galvanized steel! A simple mounting system ensures quick installation and efficient use of additional accessories on site. Suitable for use also with acid-resistant mounting components. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Cable ladder (EC000854)
Type of side joistProfile (open)
Side perforationyes
Type of rungPerforated profile
Fixation rungWelded
Height56 mm
Width600 mm
Length6000 mm
Working length6000 mm
Usable cross section18800 mm²
Suitable for circuit integrityyes
Rung centre spacing250 mm
Vertical cable ladderno
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised zinc-aluminium

Product codes

SAPCJH898
STK1406817
PLC1406817
GTIN/EAN7394333047492
Manufacturer part numberMP-156PZ4
Vendor material number1406817

Basic information

Package measurements (L x W x H)1000 x 600 x 56 mm
Package volume33.6 l
Package weight2.9 kg
Base unitMeter
Package units6 / 60 / 360
Package contents
UNSPSC39131703
BrandMP BOLAGEN
VendorMP BOLAGEN OY

Documents (7)

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)7.772
GWP, unitMeter
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents
