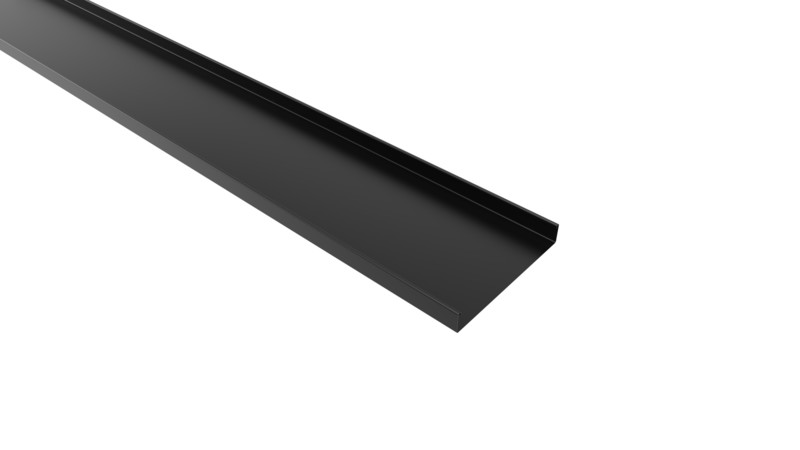

CABLE TRAY 350SV3 FE C1 300 MM 3 M BLK
Product code
1406701
Cable shelves are used in situations where cables need to be hidden from view. The perforated cable shelf promotes heat dissipation from cables into the air and allows for cable attachment. The product is made of steel and galvanized to prevent corrosion. Standard colors are galvanized steel and white (RAL9010). Other colors available on request. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable tray (EC000047)
Height45 mm
Width300 mm
Material thickness1 mm
Length3000 mm
Working length3000 mm
Usable cross section13500 mm²
With coverno
Side perforationno
Bottom perforationno
ModelWithout connector
Suitable for circuit integrityno
MaterialSteel
Material qualityOther
Surface protectionPowder coating
ColourBlack
Product codes
SAPCMR531
STK1406701
PLC1406701
GTIN/EAN6438100348052
Manufacturer part numberMP-350SV3
Vendor material number1406701
Basic information
Package measurements (L x W x H)1000 x 300 x 45 mm
Package volume13.5 l
Package weight6.36 kg
Base unitMeter
Package units3 / 40
Package contents–
UNSPSC39131704
BrandMP BOLAGEN
VendorMP BOLAGEN OY
