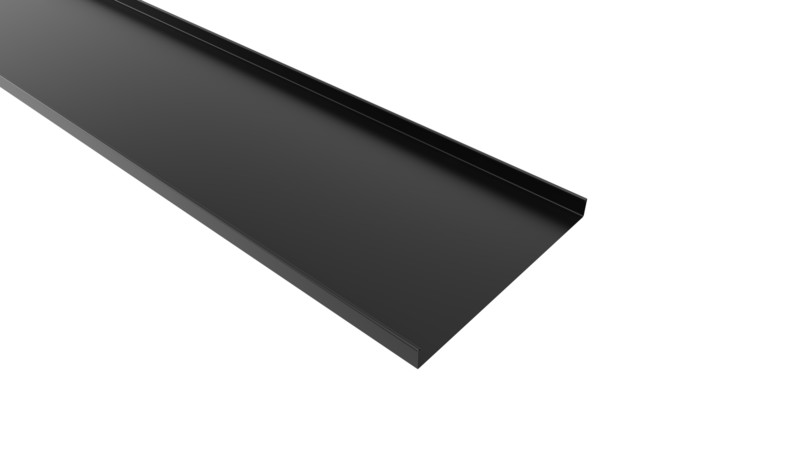

CABLE TRAY 370SV3 FE C1 500 MM 3 M BLK
Product code
1406702
Cable shelves are used in situations where cables need to be hidden from view. The perforated cable shelf promotes heat dissipation from cables into the air and allows for cable attachment. The product is made of steel and galvanized to prevent corrosion. Standard colors are galvanized steel and white (RAL9010). Other colors available on request. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable tray (EC000047)
Height45 mm
Width500 mm
Material thickness1 mm
Length3000 mm
Working length3000 mm
Usable cross section22500 mm²
With coverno
Side perforationno
Bottom perforationno
ModelWithout connector
Suitable for circuit integrityyes
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised
ColourBlack
Product codes
SAPCMR528
STK1406702
PLC1406702
GTIN/EAN6438100348069
Manufacturer part numberMP-370SV3
Vendor material number1406702
Basic information
Package measurements (L x W x H)1000 x 500 x 45 mm
Package volume22.5 l
Package weight17.85 kg
Base unitMeter
Package units3 / 30
Package contents–
UNSPSC39131704
BrandMP BOLAGEN
VendorMP BOLAGEN OY
