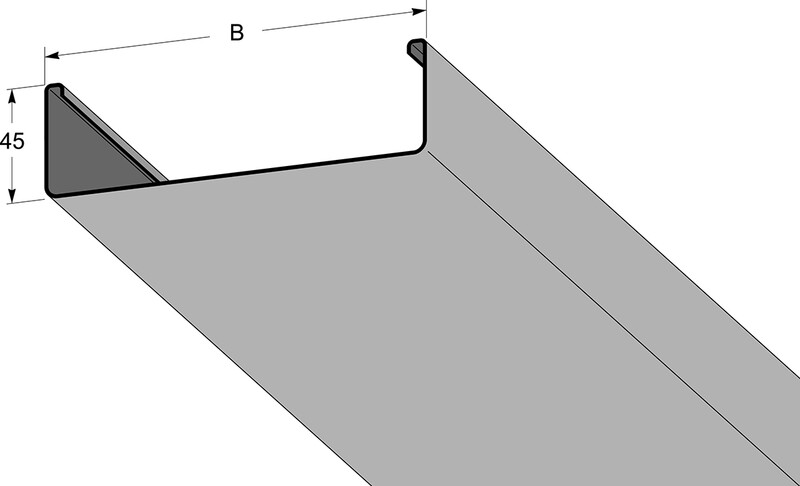

CABLE TRAY MP-380SV C2 600X45X2000 BLK
Product code
1406884
The solid painted shelf is delivered so that the inner sides of both ends have uncoated areas. Other lengths and color shades are available as needed. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable tray (EC000047)
Height45 mm
Width600 mm
Material thickness5 mm
Length2000 mm
Working length2000 mm
Usable cross section27000 mm²
With coverno
Side perforationno
Bottom perforationno
NATO-mounting holesno
ModelWithout connector
Type of connectionOther
Suitable for circuit integrityyes
MaterialSteel
Material qualityOther
Product codes
SAPDAN761
STK1406884
PLC1406884
GTIN/EAN7394333101521
Manufacturer part number1363306
Vendor material number1406884
Basic information
Package measurements (L x W x H)1000 x 600 x 45 mm
Package volume27 l
Package weight8.3 kg
Base unitMeter
Package units4 / 60
Package contents–
UNSPSC39131704
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)22.244
GWP, unitMeter
Source for GWP dataEPD
