CANTILEVER ARM 100V MP-528V
Product code
1467606

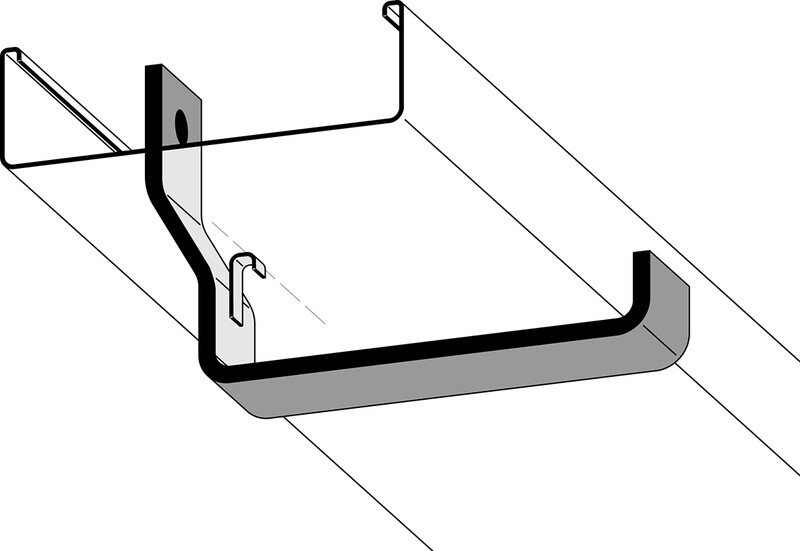

External wall bracket
Safety factor: ? 1.7 times maximum load. This product description is an automated translation of the original Finnish description.
Safety factor: ? 1.7 times maximum load. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Bracket for cable support system (EC000022)

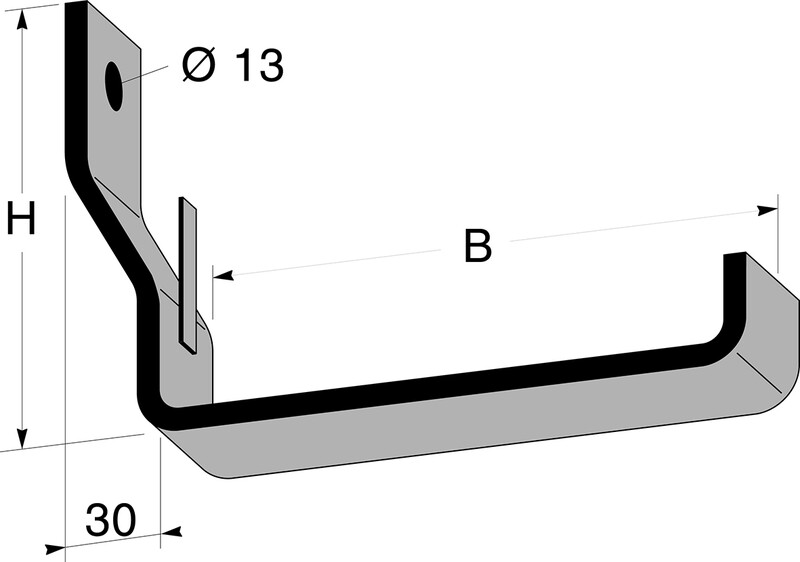

Length135 mm
Width30 mm
Height125 mm
Suitable for cable support system width100-100 mm
ModelWall bracket
Angle90-90 °
Safe working load according to IEC 61537400 N
Suitable for circuit integrityyes
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised and coated
ColourWhite
RAL-number9010
Product codes
SAPANL471
STK1467606
PLC1467606
GTIN/EAN7394333113531
Manufacturer part numberMP-528V
Vendor material number1467606
Basic information
Package measurements (L x W x H)30 x 150 x 125 mm
Package volume0.563 l
Package weight0.3 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.771
GWP, uniteach
Source for GWP dataEPD
