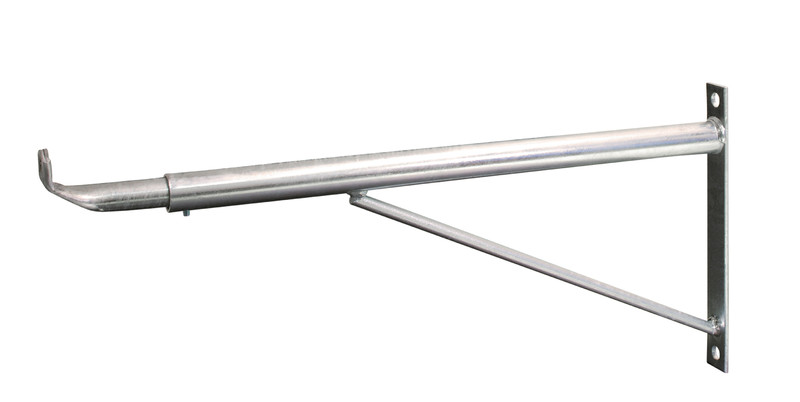

CANTILEVER ARM 550-850 MM
Product code
1467077

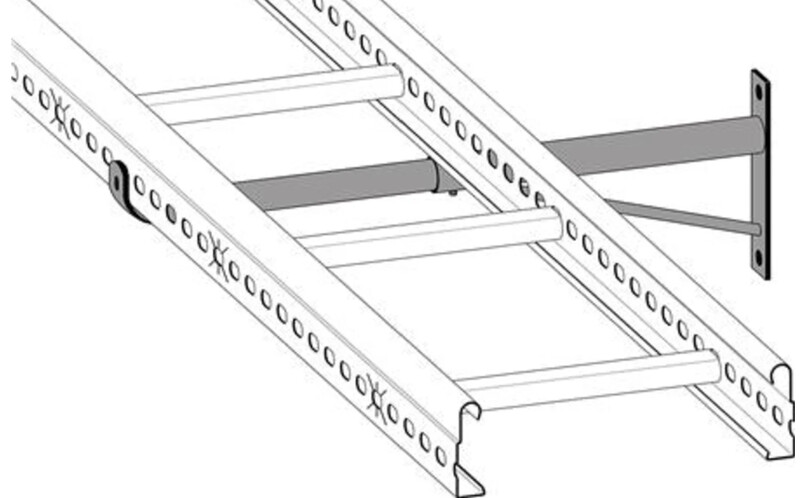

Adjustable wall bracket KS for all pipe types
Safety factor ? 1.7 times maximum load. Maximum load 300 kg at shortest length. Maximum load 125 kg at longest length. Fastening uses screw set MP-937 Z. This product description is an automated translation of the original Finnish description.
Safety factor ? 1.7 times maximum load. Maximum load 300 kg at shortest length. Maximum load 125 kg at longest length. Fastening uses screw set MP-937 Z. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Bracket for cable support system (EC000022)

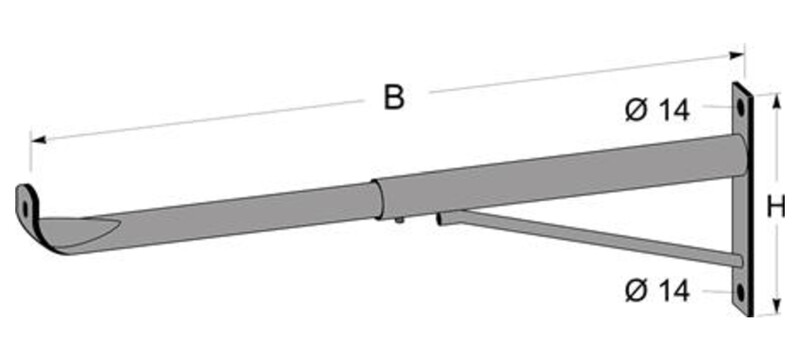

Length35 mm
Width850 mm
Height180 mm
Suitable for cable support system width550-850 mm
ModelWall bracket
Angle90-90 °
Safe working load according to IEC 615371250 N
Suitable for circuit integrityyes
MaterialSteel
Material qualityOther
Surface protectionHot-dip galvanised
Operating temperature-40-120 °C
ColourZinc
RAL-number0
Product codes
SAPAIR232
STK1467077
PLC1467077
GTIN/EAN7394333005263
Manufacturer part numberMP-178Z
Vendor material number1467077
Basic information
Package measurements (L x W x H)570 x 35 x 280 mm
Package volume5.586 l
Package weight2.53 kg
Base uniteach
Package units1 / 10 / 40
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)7.1599
GWP, uniteach
Source for GWP dataEPD
