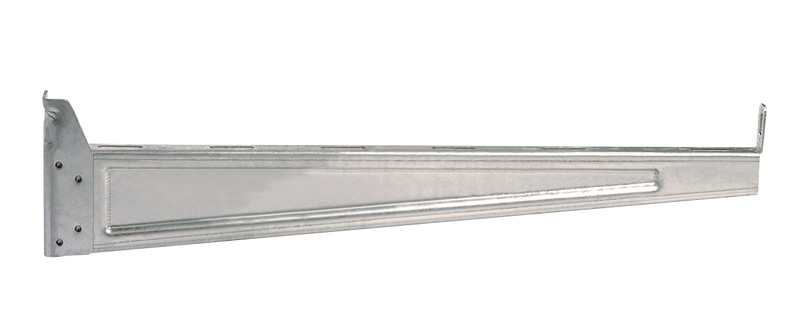

CANTILEVER ARM 753S C2 KL200MM 150KG KZNOL
Product code
1467263

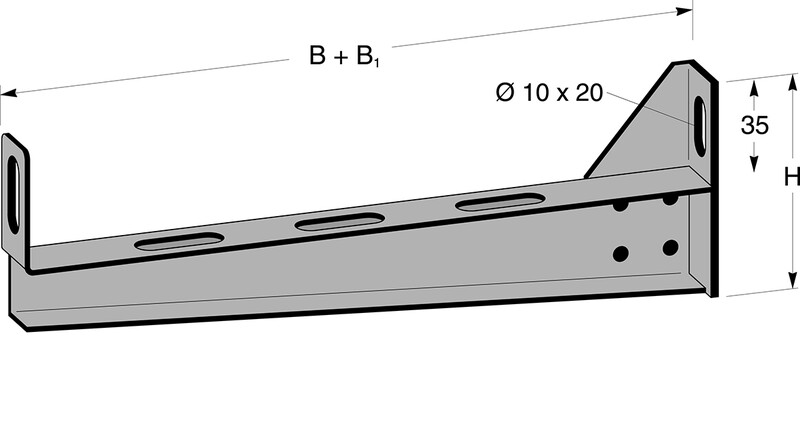

External wall bracket type KL

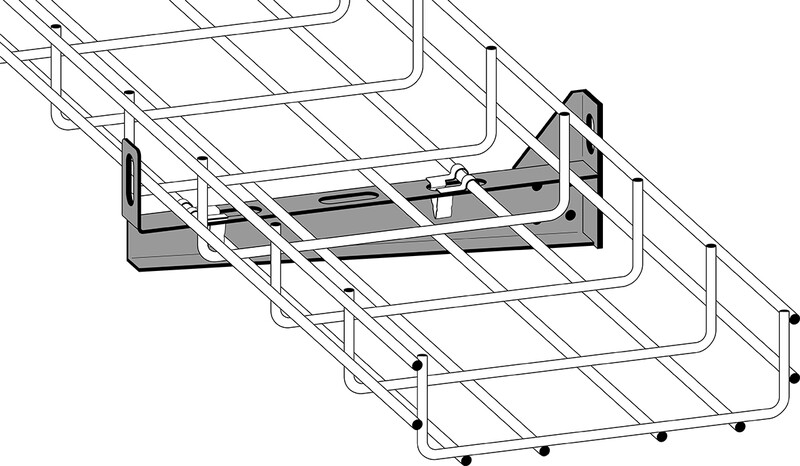

The wall bracket is designed for higher loads. Safety factor: ? 1.7 times maximum load. When used with wire shelves, the wall bracket is locked to the wire shelf using the bracket fitting MP-733. Maximum load = 150 kg. This product description is an automated translation of the original Finnish description.
The wall bracket is designed for higher loads. Safety factor: ? 1.7 times maximum load. When used with wire shelves, the wall bracket is locked to the wire shelf using the bracket fitting MP-733. Maximum load = 150 kg. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Bracket for cable support system (EC000022)
Length40 mm
Width240 mm
Height80 mm
Suitable for cable support system width200-200 mm
ModelWall bracket
Angle90-90 °
Safe working load according to IEC 615371500 N
Suitable for circuit integrityno
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised
Operating temperature-40-120 °C
ColourZinc
RAL-number0
Product codes
SAPAIR519
STK1467263
PLC1467263
GTIN/EAN7394333054667
Manufacturer part numberMP-753S
Vendor material number1467263
Basic information
Package measurements (L x W x H)250 x 40 x 80 mm
Package volume0.8 l
Package weight0.3 kg
Base uniteach
Package units1 / 40
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
