CANTILEVER ARM 753Z C4 KL200MM 150KG KZN
Product code
1467264

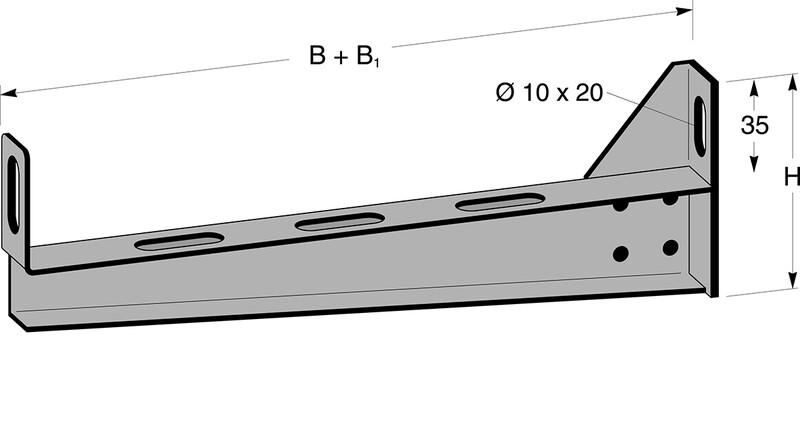

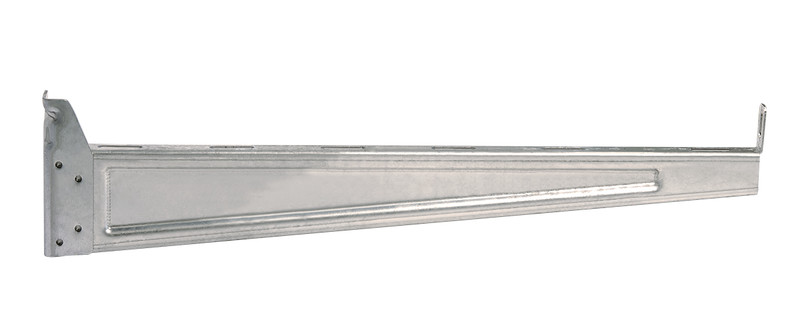

External wall bracket type KL

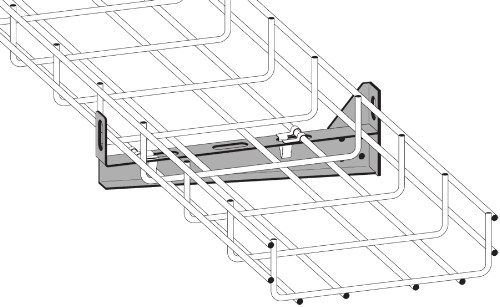

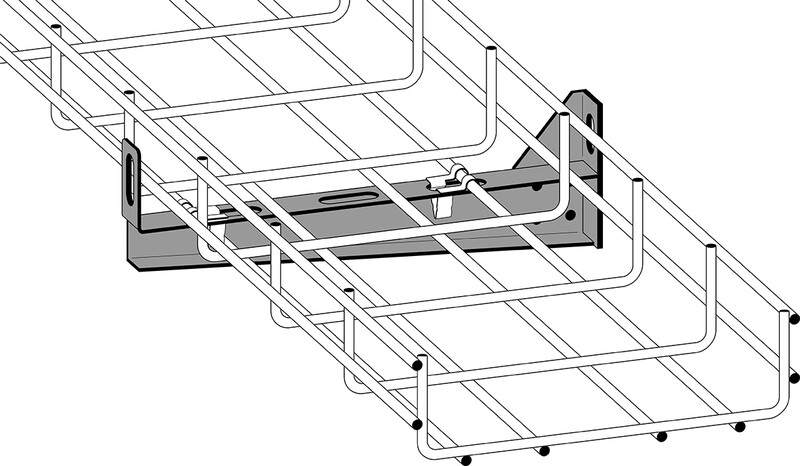

The wall bracket is designed for higher loads. Safety factor: ? 1.7 times maximum load. When used with wire shelves, the wall bracket is locked to the wire shelf using the bracket fitting MP-733. Maximum load = 150 kg. This product description is an automated translation of the original Finnish description.
The wall bracket is designed for higher loads. Safety factor: ? 1.7 times maximum load. When used with wire shelves, the wall bracket is locked to the wire shelf using the bracket fitting MP-733. Maximum load = 150 kg. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Bracket for cable support system (EC000022)
Length40 mm
Width240 mm
Height80 mm
Suitable for cable support system width200-200 mm
ModelWall bracket
Angle90-90 °
Safe working load according to IEC 615371500 N
Suitable for circuit integrityno
MaterialSteel
Material qualityOther
Surface protectionHot-dip galvanised
Operating temperature-40-120 °C
ColourZinc
RAL-number0
Product codes
SAPAIN577
STK1467264
PLC1467264
GTIN/EAN7394333054797
Manufacturer part numberMP-753Z
Vendor material number1467264
Basic information
Package measurements (L x W x H)250 x 40 x 80 mm
Package volume0.8 l
Package weight0.32 kg
Base uniteach
Package units1 / 80
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (9)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.9056
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
