CANTILEVER ARM 755S C2 KL400MM 150KG KZNOL
Product code
1467269

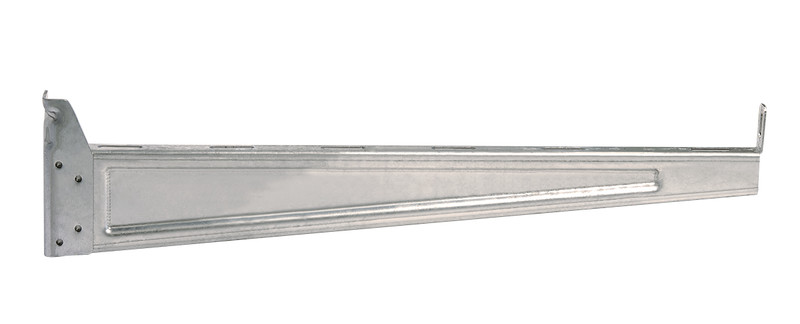

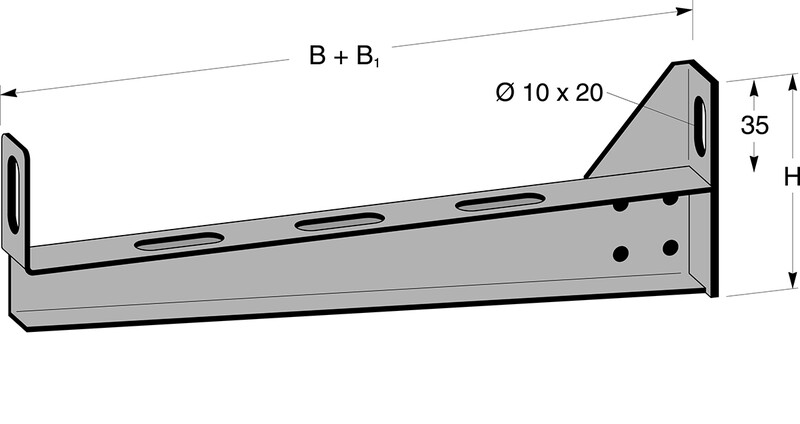

External wall bracket type KL

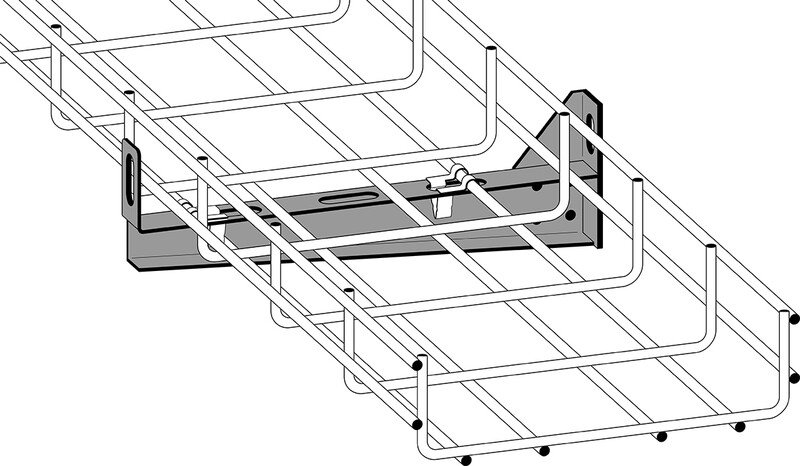

The wall bracket is designed for higher loads. Safety factor: ? 1.7 times maximum load. When used with wire shelves, the wall bracket is locked to the wire shelf using the bracket fitting MP-733. Maximum load = 150 kg. This product description is an automated translation of the original Finnish description.
The wall bracket is designed for higher loads. Safety factor: ? 1.7 times maximum load. When used with wire shelves, the wall bracket is locked to the wire shelf using the bracket fitting MP-733. Maximum load = 150 kg. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Bracket for cable support system (EC000022)
Length40 mm
Width440 mm
Height100 mm
Suitable for cable support system width400-400 mm
ModelWall bracket
Angle90-90 °
Safe working load according to IEC 615371500 N
Suitable for circuit integrityno
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised
Operating temperature-40-120 °C
ColourZinc
RAL-number0
Product codes
SAPAIV319
STK1467269
PLC1467269
GTIN/EAN7394333055213
Manufacturer part numberMP-755S
Vendor material number1467269
Basic information
Package measurements (L x W x H)450 x 90 x 40 mm
Package volume1.62 l
Package weight0.52 kg
Base uniteach
Package units1 / 40
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1399
GWP, uniteach
Source for GWP dataEPD
