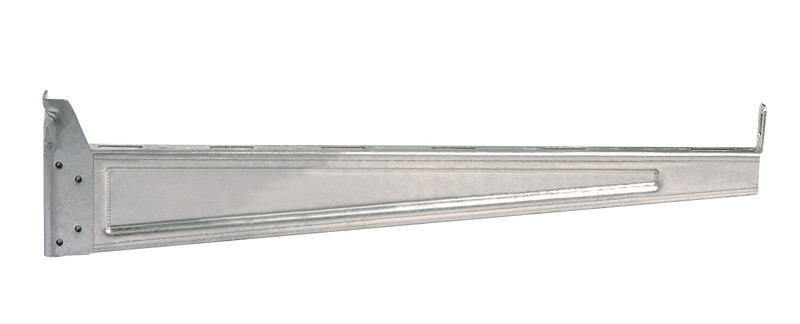

CANTILEVER ARM 756S C2 KL500MM 150KG KZNOL
Product code
1467882
External wall bracket type KL

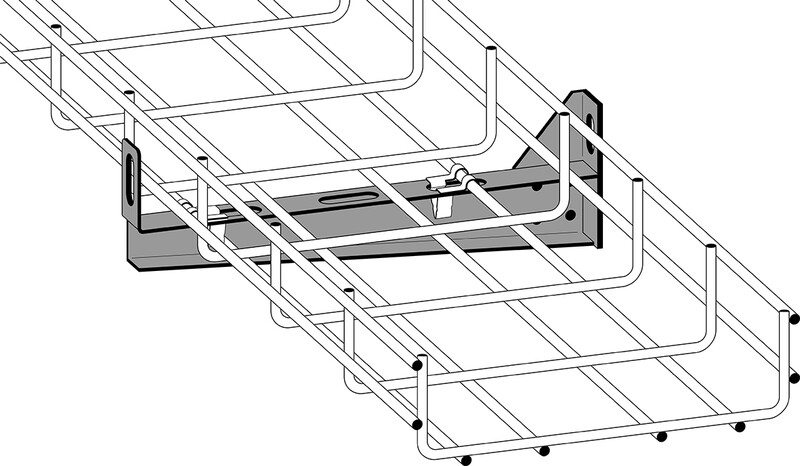

The wall bracket is designed for higher loads. Safety factor: ? 1.7 times maximum load. When used with wire shelves, the wall bracket is locked to the wire shelf using the bracket fitting MP-733. Maximum load = 150 kg. This product description is an automated translation of the original Finnish description.
The wall bracket is designed for higher loads. Safety factor: ? 1.7 times maximum load. When used with wire shelves, the wall bracket is locked to the wire shelf using the bracket fitting MP-733. Maximum load = 150 kg. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Bracket for cable support system (EC000022)
Length40 mm
Width550 mm
Height150 mm
Suitable for cable support system width500-500 mm
ModelWall bracket
Angle90-90 °
Safe working load according to IEC 615371500 N
Suitable for circuit integrityno
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised
Operating temperature-40-120 °C
ColourZinc
RAL-number0
Product codes
SAPCAF659
STK1467882
PLC1467882
GTIN/EAN7394333055527
Manufacturer part numberMP-756S
Vendor material number1467882
Basic information
Package measurements (L x W x H)555 x 145 x 43 mm
Package volume3.46 l
Package weight1.09 kg
Base uniteach
Package units1 / 40
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
