CANTILEVER ARM MP-754V KL300MM WHITE
Product code
1467878

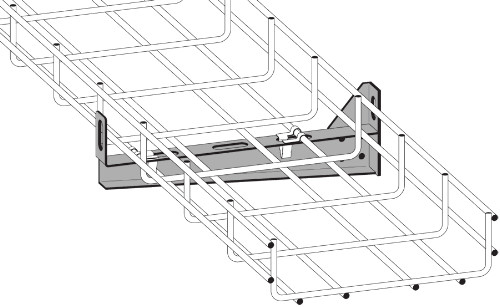

External wall bracket type KL
The wall bracket is designed for higher loads. Safety factor: ? 1.7 times maximum load. When used with wire shelves, the wall bracket is locked to the wire shelf using the bracket fitting MP-733. Maximum load = 150 kg. This product description is an automated translation of the original Finnish description.
The wall bracket is designed for higher loads. Safety factor: ? 1.7 times maximum load. When used with wire shelves, the wall bracket is locked to the wire shelf using the bracket fitting MP-733. Maximum load = 150 kg. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Bracket for cable support system (EC000022)
Length40 mm
Width340 mm
Height90 mm
Suitable for cable support system width300-300 mm
ModelWall bracket
Angle90-90 °
Safe working load according to IEC 615371500 N
Suitable for circuit integrityyes
MaterialSteel
Material qualityOther
Surface protectionContinuously galvanised
Operating temperature-40-120 °C
ColourWhite
RAL-number9010
Product codes
SAPCAN639
STK1467878
PLC1467878
GTIN/EAN7394333955056
Manufacturer part numberMP-754V
Vendor material number1467878
Basic information
Package measurements (L x W x H)350 x 40 x 90 mm
Package volume1.26 l
Package weight0.3 kg
Base uniteach
Package units1
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.771
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
