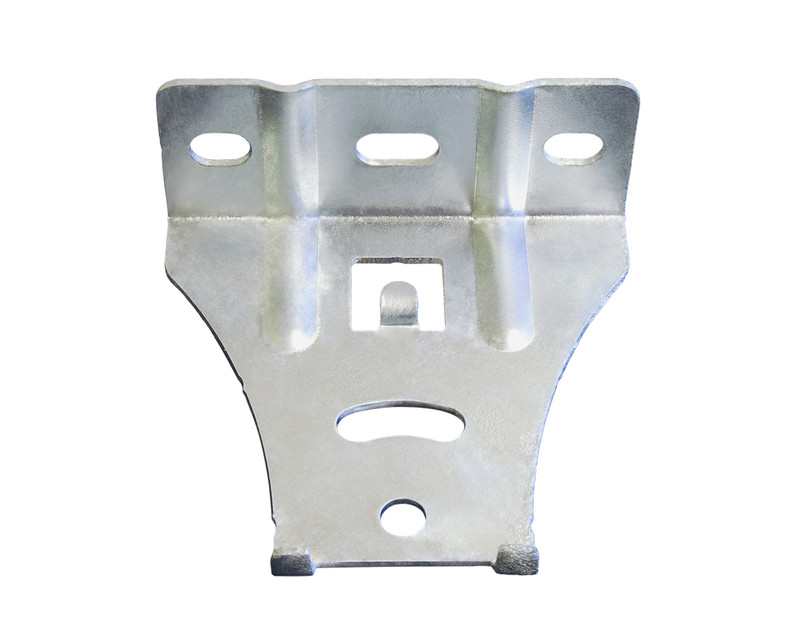

CEILING CLAMP MP-904Z TL Z
Product code
1467317
Roof bracket type TL

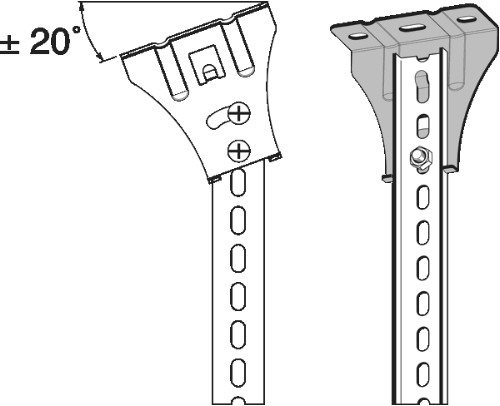

The roof bracket is attached to the support rail with the screw set MP-937. This product description is an automated translation of the original Finnish description.
The roof bracket is attached to the support rail with the screw set MP-937. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling bracket for cable support system (EC000896)

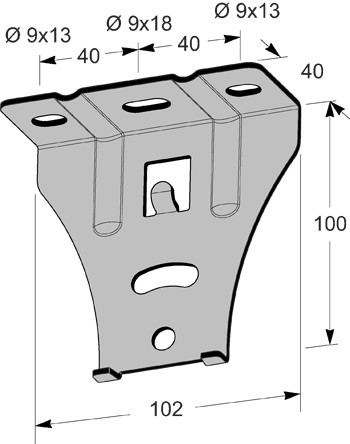

Length102 mm
Width40 mm
Height100 mm
Thread size (metric)8
ModelCeiling bracket
Load bearing capacity2500 N
Hingingno
Adjustableyes
Suitable for circuit integrityyes
MaterialSteel
Stainless steel, pickledno
Material qualityOther
Surface protectionHot-dip galvanised
Operating temperature-40-120 °C
ColourZinc
Product codes
SAPAIU244
STK1467317
PLC1467317
GTIN/EAN7394333012377
Manufacturer part numberMP-904Z
Vendor material number1467317
Basic information
Package measurements (L x W x H)100 x 100 x 40 mm
Package volume0.4 l
Package weight0.157 kg
Base uniteach
Package units1 / 10 / 100 / 900
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (8)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.4443
GWP, uniteach
Source for GWP dataEPD
