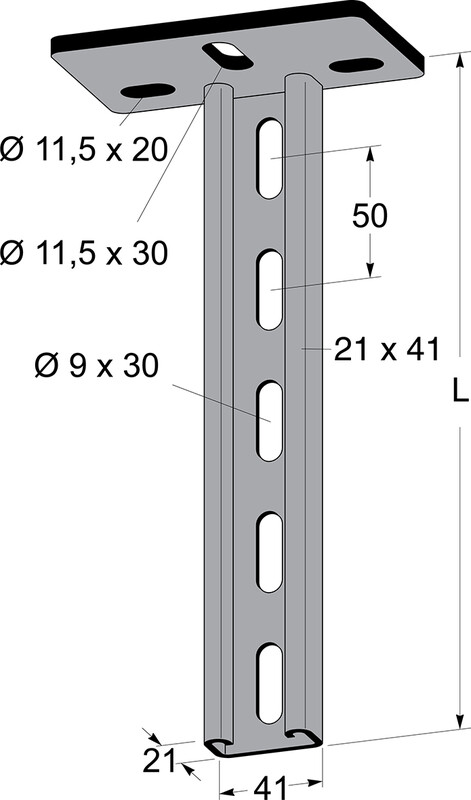

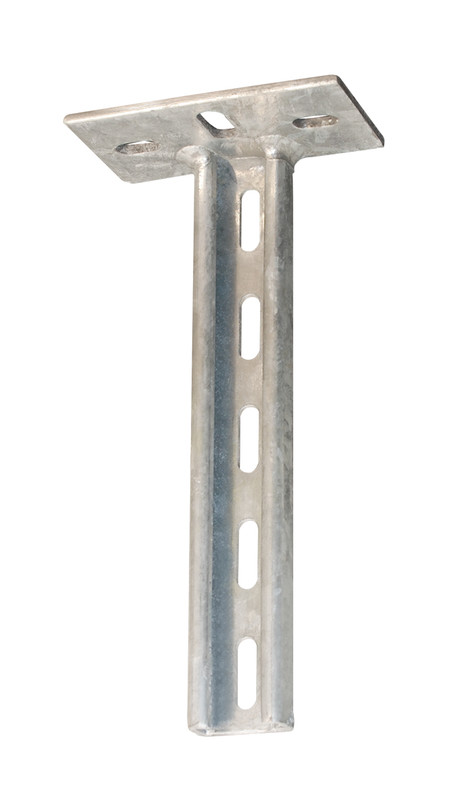

CEILING PENDANT 21MM MP-966Z MP-V 500Z
Product code
1467360
Roof/floor support MP-V
To attach wall supports to the roof/floor support, see product catalog page 45.
To calculate the deflection of the roof/floor support, calculate the bending moment using the following formula: M2=F x (B+0.12)/2. Refer to the deflection table for the selected support. The line indicates the maximum allowable deflection according to the SS-EN 61537 standard (1/20 of the support length). This product description is an automated translation of the original Finnish description.
To attach wall supports to the roof/floor support, see product catalog page 45.
To calculate the deflection of the roof/floor support, calculate the bending moment using the following formula: M2=F x (B+0.12)/2. Refer to the deflection table for the selected support. The line indicates the maximum allowable deflection according to the SS-EN 61537 standard (1/20 of the support length). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling profile for cable support system (EC000082)
Length500 mm
Profile width41 mm
Profile height21 mm
ModelU-profile
Load bearing capacity5000 kN
Suitable for circuit integrityyes
MaterialSteel
Stainless steel, pickledno
Material qualityOther
Surface protectionHot-dip galvanised
ColourOther
RAL-number0
Weight1.25 kg
Product codes
SAPAIQ578
STK1467360
PLC1467360
GTIN/EAN7394333030449
Manufacturer part numberMP-966Z
Vendor material number1467360
Basic information
Package measurements (L x W x H)510 x 120 x 70 mm
Package volume4.284 l
Package weight1.25 kg
Base uniteach
Package units1 / 20 / 140
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (8)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.5375
GWP, uniteach
Source for GWP dataEPD
