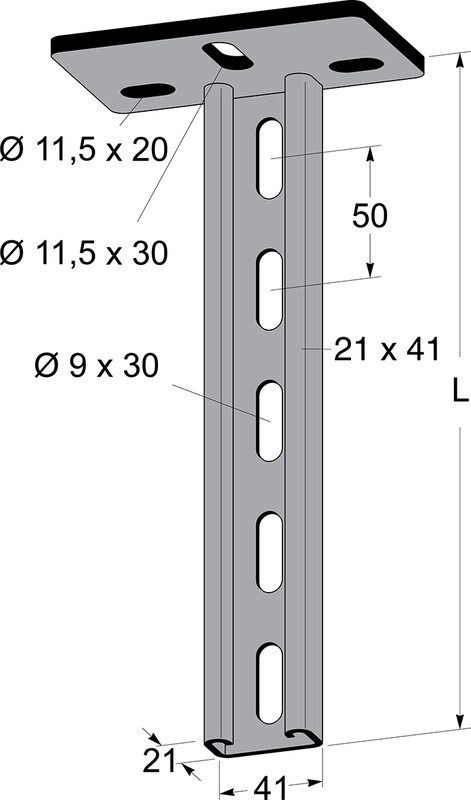

CEILING PENDANT 21MM MP-967Z MP-V 750Z
Product code
1467361
Roof/floor support MP-V
To attach wall supports to the roof/floor support, see product catalog page 45.
To calculate the deflection of the roof/floor support, calculate the bending moment using the following formula: M2=F x (B+0.12)/2. Refer to the deflection table for the selected support. The line indicates the maximum allowable deflection according to the SS-EN 61537 standard (1/20 of the support length). This product description is an automated translation of the original Finnish description.
To attach wall supports to the roof/floor support, see product catalog page 45.
To calculate the deflection of the roof/floor support, calculate the bending moment using the following formula: M2=F x (B+0.12)/2. Refer to the deflection table for the selected support. The line indicates the maximum allowable deflection according to the SS-EN 61537 standard (1/20 of the support length). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling profile for cable support system (EC000082)
Length750 mm
Profile width41 mm
Profile height21 mm
ModelU-profile
Load bearing capacity5000 kN
Suitable for circuit integrityyes
MaterialSteel
Stainless steel, pickledno
Material qualityOther
Surface protectionHot-dip galvanised
ColourOther
RAL-number0
Weight1.65 kg
Product codes
SAPAIT807
STK1467361
PLC1467361
GTIN/EAN7394333030609
Manufacturer part numberMP-967Z
Vendor material number1467361
Basic information
Package measurements (L x W x H)760 x 120 x 70 mm
Package volume6.384 l
Package weight1.65 kg
Base uniteach
Package units1 / 10 / 100
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.6695
GWP, uniteach
Source for GWP dataEPD
