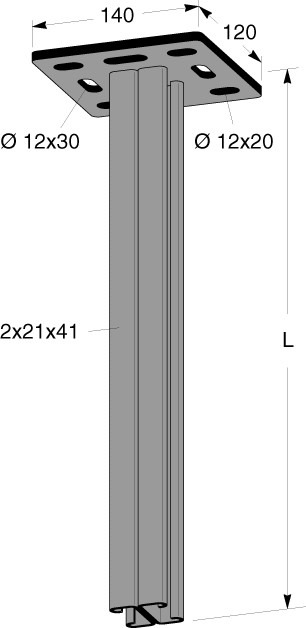

CEILING PENDANT 2X21MM MP-972Z MP-DV 1000Z
Product code
1467365
Roof/floor support MP-DV
To calculate how much the roof/floor support deflects, compute the bending moment using the following formula: M2=F x (B+0.12)/2. Refer to the table for the deflection of the selected support. The end of the line indicates the maximum allowable deflection according to the SS-EN 61537 standard (1/20 of the support length). This product description is an automated translation of the original Finnish description.
To calculate how much the roof/floor support deflects, compute the bending moment using the following formula: M2=F x (B+0.12)/2. Refer to the table for the deflection of the selected support. The end of the line indicates the maximum allowable deflection according to the SS-EN 61537 standard (1/20 of the support length). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling profile for cable support system (EC000082)
Length1000 mm
Profile width41 mm
Profile height42 mm
ModelU-profile double-sided
Load bearing capacity16000 kN
Suitable for circuit integrityyes
MaterialSteel
Stainless steel, pickledno
Material qualityOther
Surface protectionHot-dip galvanised
ColourOther
RAL-number0
Weight4.1 kg
Product codes
SAPAIM368
STK1467365
PLC1467365
GTIN/EAN7394333032221
Manufacturer part numberMP-972Z
Vendor material number1467365
Basic information
Package measurements (L x W x H)1010 x 120 x 140 mm
Package volume16.968 l
Package weight4.28 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39131703
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (8)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)12.1124
GWP, uniteach
Source for GWP dataEPD
