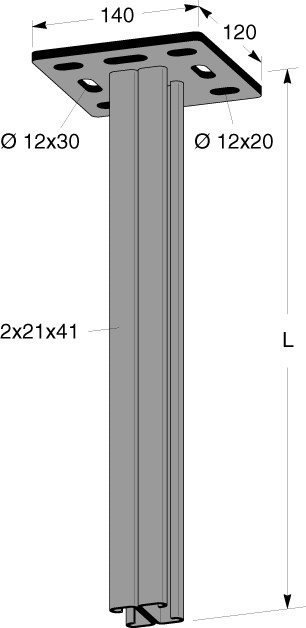

CEILING PENDANT 2X21MM MP-973Z MP-DV 1500Z
Product code
1467366
Determining the deflection of the roof/floor support:
Calculate the bending moment according to the formula M2=FxB+0.12/2. Refer to the table for the y-axis deflection value corresponding to the bending moment, based on the selected support's straight line. The maximum allowable deflection is 1/20 of the support length according to the EN 61537 standard. This product description is an automated translation of the original Finnish description.
Calculate the bending moment according to the formula M2=FxB+0.12/2. Refer to the table for the y-axis deflection value corresponding to the bending moment, based on the selected support's straight line. The maximum allowable deflection is 1/20 of the support length according to the EN 61537 standard. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling profile for cable support system (EC000082)
Length1500 mm
Profile width41 mm
Profile height42 mm
ModelU-profile double-sided
Load bearing capacity16000 kN
Suitable for circuit integrityyes
MaterialSteel
Stainless steel, pickledno
Material qualityOther
Surface protectionHot-dip galvanised
ColourOther
RAL-number0
Weight6050 kg
Product codes
SAPAIM169
STK1467366
PLC1467366
GTIN/EAN7394333032351
Manufacturer part numberMP-973Z
Vendor material number1467366
Basic information
Package measurements (L x W x H)1510 x 120 x 140 mm
Package volume25.368 l
Package weight6.05 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)17.1215
GWP, uniteach
Source for GWP dataEPD
