CHANNEL 21X41 MM CHANNEL 21X41 MMMP-231V
Product code
1467516
Anchor rail, type MP-V
Use sliding nut (H=21 mm) for internal fastening. Also available ordered in 6 m length. This product description is an automated translation of the original Finnish description.
Use sliding nut (H=21 mm) for internal fastening. Also available ordered in 6 m length. This product description is an automated translation of the original Finnish description.
Product details

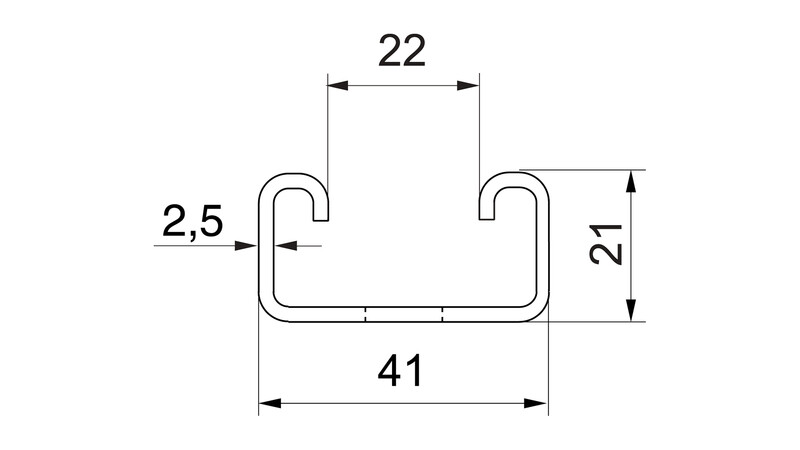

Technical specifications
Product class (ETIM)Mounting rail/-profile (EC000386)
Length3000 mm
Width41 mm
Height21 mm
Slit width22 mm
Material thickness2.5 mm
Profile shapeU-profile
ModelSingular profile

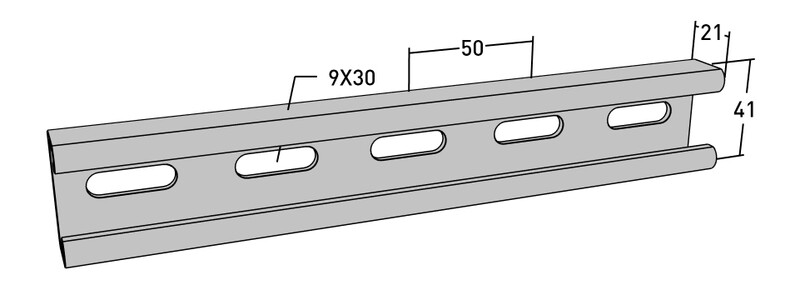

Type of perforationBack perforated
Hole width30 mm
With toothingno
Snap-offno
Load bearing capacity0 kN
Area moment of inertia Iy0 cm4
Area of inertia Iz0 cm4
Moment of resistance Wy0 cm³
Product codes
SAPANL985
STK1467516
PLC1467516
GTIN/EAN7394333834009
Manufacturer part numberMP-231V
Vendor material number1467516
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume0.861 l
Package weight1.73 kg
Base unitMeter
Package units3 / 24
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.4461
GWP, unitMeter
Source for GWP dataEPD
