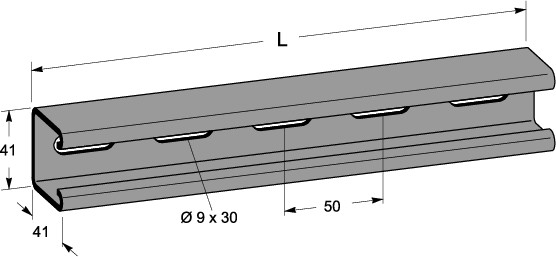

CHANNEL 41X41 MM 3000 MM
Product code
1467098
Anchor rail MP-FV 41x41mm
Use a sliding nut (H=41 mm) for internal fastening. Also available on order in 6m length. This product description is an automated translation of the original Finnish description.
Use a sliding nut (H=41 mm) for internal fastening. Also available on order in 6m length. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mounting rail/-profile (EC000386)
Length3000 mm
Width41 mm
Height41 mm
Slit width22 mm
Material thickness5 mm
Profile shapeU-profile
ModelSingular profile
Type of perforationBack perforated
Hole width9 mm
With toothingno
Snap-offno
Load bearing capacity0 kN
Area moment of inertia Iy0 cm4
Area of inertia Iz0 cm4
Moment of resistance Wy0 cm³
Product codes
SAPANM082
STK1467098
PLC1467098
GTIN/EAN7394333034133
Manufacturer part numberMP-233Z
Vendor material number1467098
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume1.681 l
Package weight2.535 kg
Base unitMeter
Package units3 / 18 / 216
Package contents–
UNSPSC39131705
BrandMP BOLAGEN
VendorMP BOLAGEN OY
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)7.1741
GWP, unitMeter
Source for GWP dataEPD
