CONNECTING BOLTS 10 MP-839E C1 M8/M6
Product code
1467510

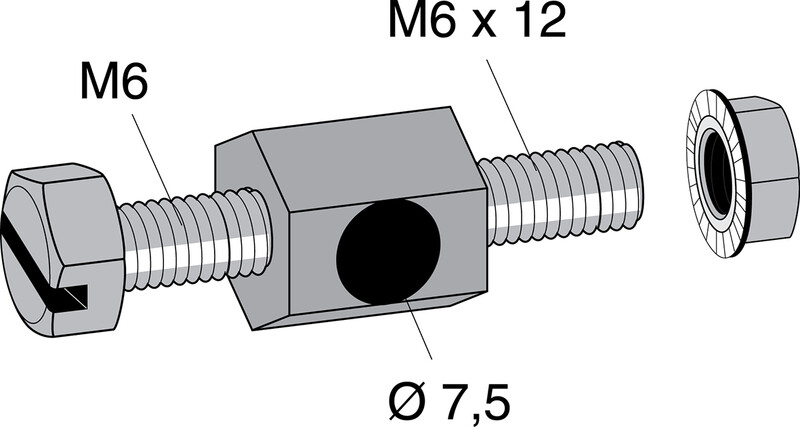

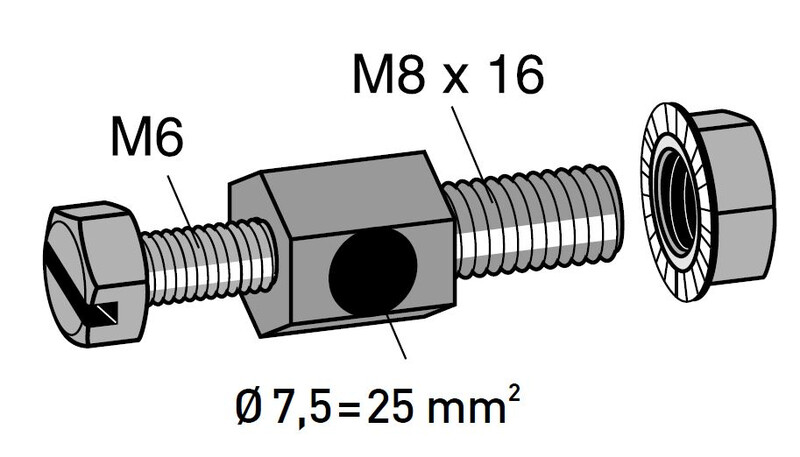

Can be used as a connecting screw for a conductor with a maximum cross-section of 16 mm² in a 6 mm hole, or with a 7.5 mm hole (M8 bolt connection) for a conductor with a maximum cross-section of 25 mm². Can also be used for tightening MP-831 steel strap (M5x20 mm). Sold in packs of 10 units. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Earth terminal clamp (EC000491)
Suitable forRound conductor
Connection cross section6 - 25 mm²
Clamping range round conductor3 - 7.5 mm
MaterialSteel
Surface protectionGalvanic/electrolytic zinc plated
Product codes
SAPANL414
STK1467510
PLC1467510
GTIN/EAN7394333035109
Manufacturer part numberMP-839E
Vendor material number1467510
Basic information
Package measurements (L x W x H)80 x 80 x 20 mm
Package volume0.128 l
Package weight0.265 kg
Package units1 / 10
Package contents10 each
UNSPSC39121424
BrandMP BOLAGEN
VendorMP BOLAGEN OY
